Closed Flat FluorCam 1300
Chlorophyll Fluorescence Imaging from Individual Cells to Plant Populations

About...

Optionally equipped with a Multi-Excitation Module, the Closed Flat FluorCam 1300/2020 represents our state-of-the-art solution, engineered to capture detailed images and data through PAM chlorophyll fluorescence measurements. This system is designed to reliably analyze the growth, development, and interactions of plants and/or other biological agents containing fluorescent proteins or probes. Whether you are working with plates or smaller plants up to 20 cm on our benchtop FluorCam 1300-C/2020, or larger specimens up to 1 m high in our stand-alone
FluorCam 1300-L/2020, our systems are tailored to meet the diverse demands of your research.
Additionally, we offer models designed for imaging larger fields of view, up to 35 x 35 cm, available in a customized box to suit specific experimental requirements.

Key Features

  • Fluorescence Imaging
  • Innovative Compact Design
  • Various LED Lightning


  • Uniform Illumination
  • State-of-the-Art Imaging
  • Complete Solution Package

Closed Flat FluorCam 1300/2020


Our state-of-the-art system FluorCam 1300/2020, optionally equipped with a Multi-Excitation Module, brings compact, advanced technology into your plant and photosynthesis research.

FluorCam 1300/2020 is engineered to capture detailed images and data from Pulse-Amplitude Modulated (PAM) chlorophyll fluorescence measurements, as well as to analyze the growth, development and interactions of plants containing fluorescent proteins or probes. The system provides valuable insights into the plant photosynthetic performance, physiological and metabolic conditions, interactions with pathogens or symbionts, and susceptibility to stress. Featuring a unique flat LED panel, the FluorCam 1300/2020 promises highly uniform illumination across a 20 × 20 cm area, ensuring accurate and reliable data with minimal shading effects. Whether you are working with smaller plants up to 20 cm on our benchtop FluorCam 1300-C/2020, or larger specimens up to 1 m high in our stand-alone FluorCam 1300-L/2020, our systems are designed to meet your research needs.

Key Features


  • Fluorescence Imaging: chlorophyll fluorescence, optionally also fluorescence of GFP, YFP, and mCherry and more.
  • Innovative Compact Design: dark adaptation and imaging in the same darkened compartment with the adjustable shelf system for plants of various sizes up to 20 cm or 1 m in height.
  • Various LED Lightning: Orange-Red, Cool White and FAR, with optional choice of UV, Royal Blue, Blue, Cyan, Green, and Amber.
  • Uniform Illumination: light homogeneity within a 200 × 200 mm area, with minimal shading to ensure even exposure across your samples.
  • State-of-the-Art Imaging: the high-resolution CCD camera, featuring an optional 7-position motorized software-controlled filter wheel.
  • Complete Solution Package: including a notebook and operational software.

Closed Flat FluorCam 1300/3535

FluorCam 1300-C/3535 extends the capabilities of the FluorCam series by enabling imaging with a larger field of view, up to 35 × 35 cm, and accommodating specimens up to 80 cm in height. This makes it ideal for researchers working with larger plants or experimental setups requiring an expansive imaging area.

Versions


Closed Flat FluorCam FC 1300-C/2020

The FC 1300-C/2020 is a compact benchtop fluorescence camera system designed for precision imaging of plants up to 20 cm high or flat samples, such as Petri dishes. This model offers a guaranteed 200 × 200 mm field of view and features a FluorCam 1300 shell (dimensions: 562 × 752 × 560 mm) with a swing-up opening door. It includes a high-resolution camera, a chlorophyll fluorescence emission filter, and a flat LED light panel that utilizes red-orange, white, and far-red LED-derived light sources. Equipped with a control PC, the FluorCam10 comprehensive software package, and a user’s guide, this system is ideal for detailed photosynthesis research.



Closed Flat FluorCam FC 1300-L/2020

Designed for larger specimens, the FC 1300-L/2020 stand-alone system accommodates plants up to 1 m in height and features a right-hand door for easy access. The extended FluorCam 1300 shell (dimensions: 560 × 1,755 × 560 mm) includes a longer measuring compartment with an adjustable shelf system and the same flat LED light panel as the benchtop model, which offers red-orange, white, and far-red excitation lights. This version also comes with a high-resolution camera providing a guaranteed 200 × 200 mm field of view, a chlorophyll fluorescence emission filter, a control PC, the comprehensive FluorCam10 software package, and a user’s guide, ensuring a complete setup for applied plant research.

Closed Flat FluorCam FC 1300-C/2020-6C with Multi-Excitation Module

This enhanced benchtop model integrates conventional chlorophyll fluorescence measurements with the capability to analyze various fluorescence or reflectance signals. Featuring a FluorCam 1300 shell (dimensions: 562 × 752 × 560 mm) with a swing-up opening door and an adjustable shelf system, it includes an upgraded flat LED light panel offering a broad spectrum of LED-derived light sources (red-orange, white, far-red, UV, royal blue, blue, cyan, green, amber). The system is also equipped with a high-resolution camera with guaranteed 200 × 200 mm field of view, a motorized filter wheel, chlorophyll and GFP fluorescence filters, a control PC, the FluorCam10 software package, and a user’s guide. Customization options include up to five additional emission filters or the Multicolor Module for expanding research options. This version is specifically designed for research involving plants and biological agents that express fluorescent proteins or are labeled with dyes, offering extensive customization to meet diverse experimental needs.



Closed Flat FluorCam FC 1300-L/2020-6C with Multi-Excitation Module

This enhanced stand-alone version is tailored for plants up to 1 m in height, combining standard chlorophyll fluorescence assessments with the measurement of various other fluorescence or reflectance signals. The extended FluorCam shell (dimensions: 560 × 1,755 × 560 mm) features easy access through a right-hand door and houses an extended measurement compartment, along with multiple LED light options (red-orange, white, far-red, UV, royal blue, blue, cyan, green, amber). The model includes a high-resolution camera with a guaranteed 200 × 200 mm field of view, a motorized, software-controlled filter wheel, chlorophyll and GFP fluorescence filters, a control PC, the FluorCam10 software package, and offers additional customization options with up to five emission filters or a Multicolor Module. This model is ideally suited for advanced studies involving genetically modified crops or the examination of pathogenic or symbiotic interactions in larger specimens.

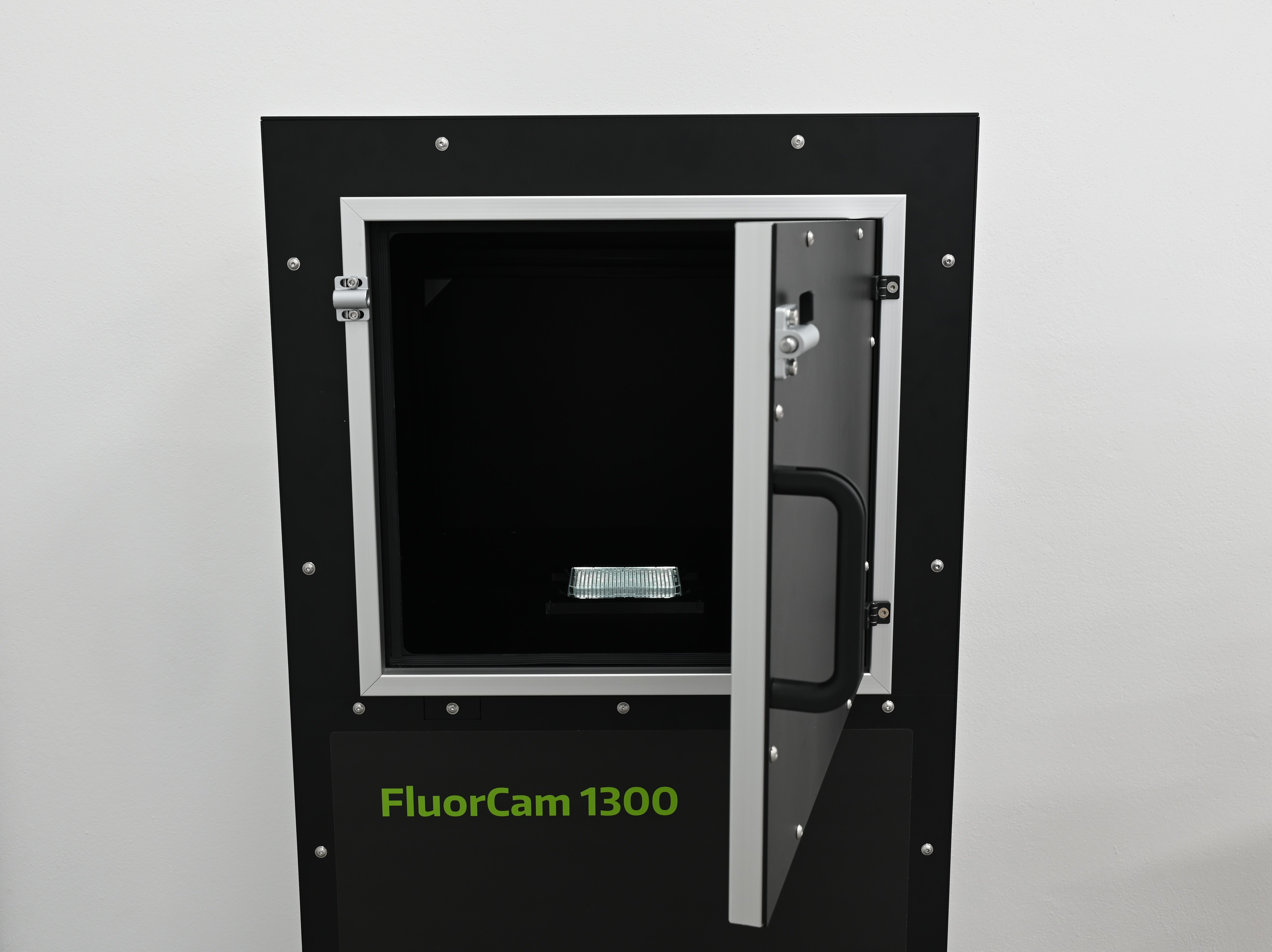

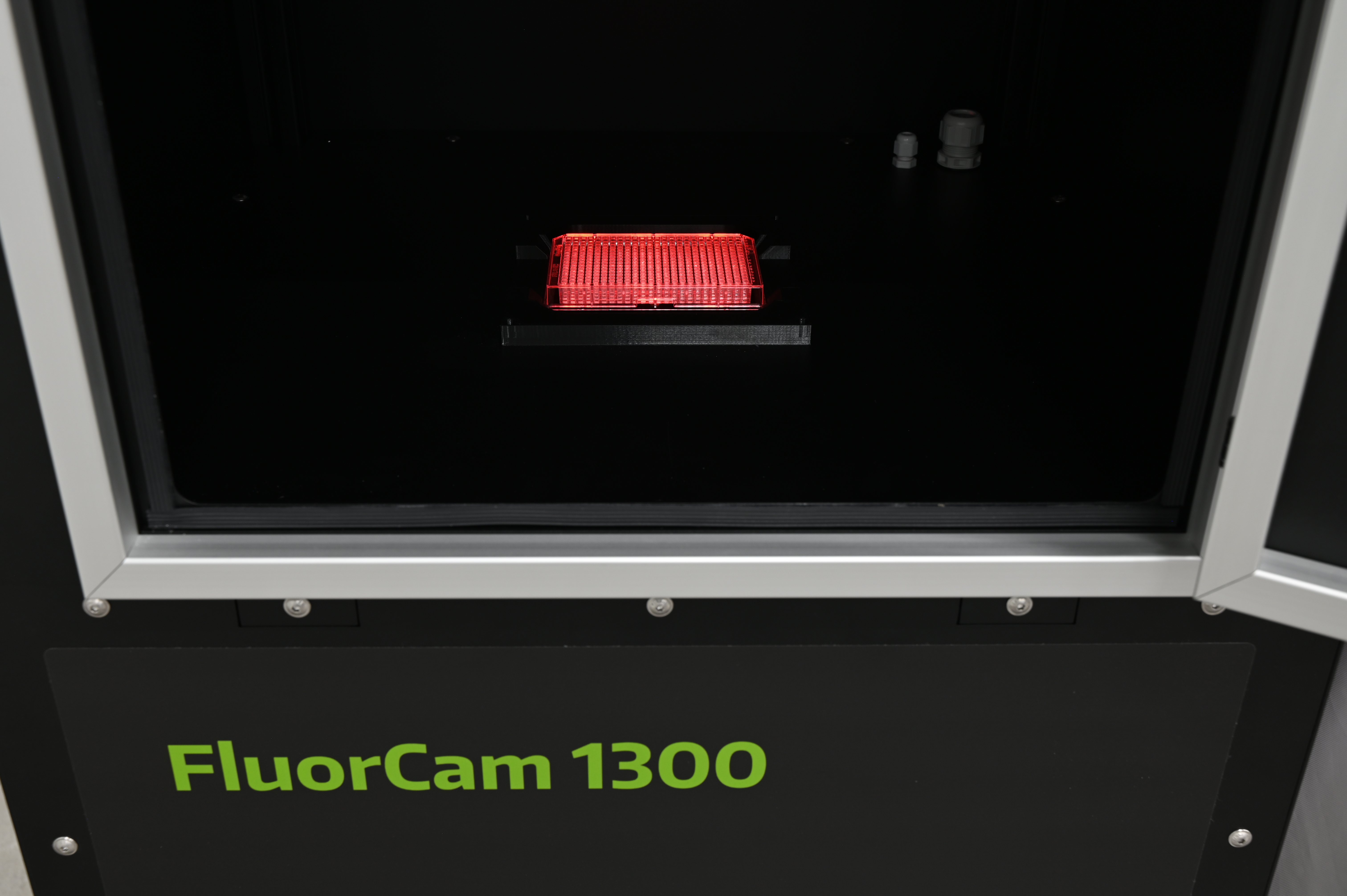

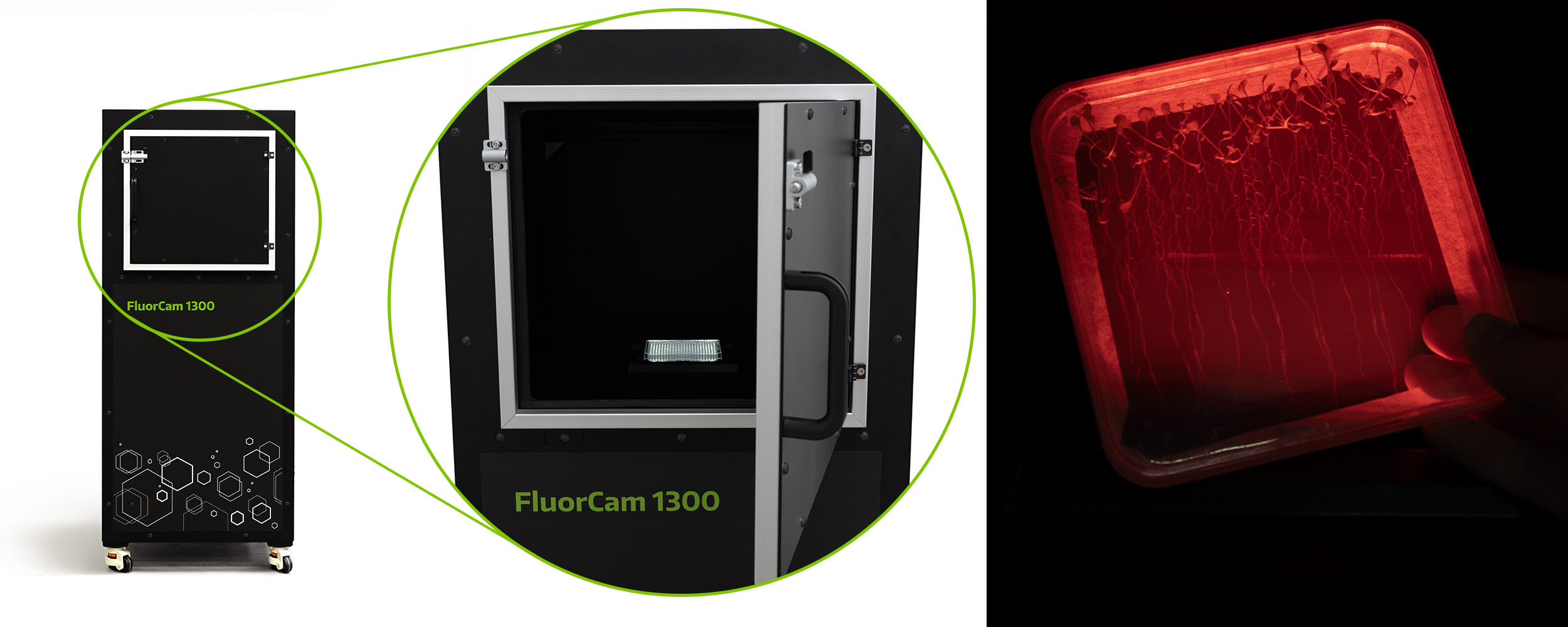

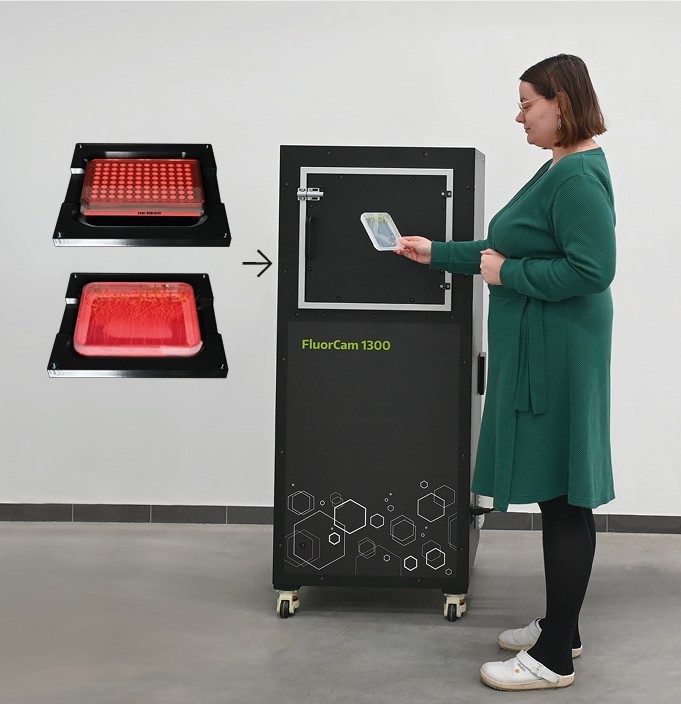

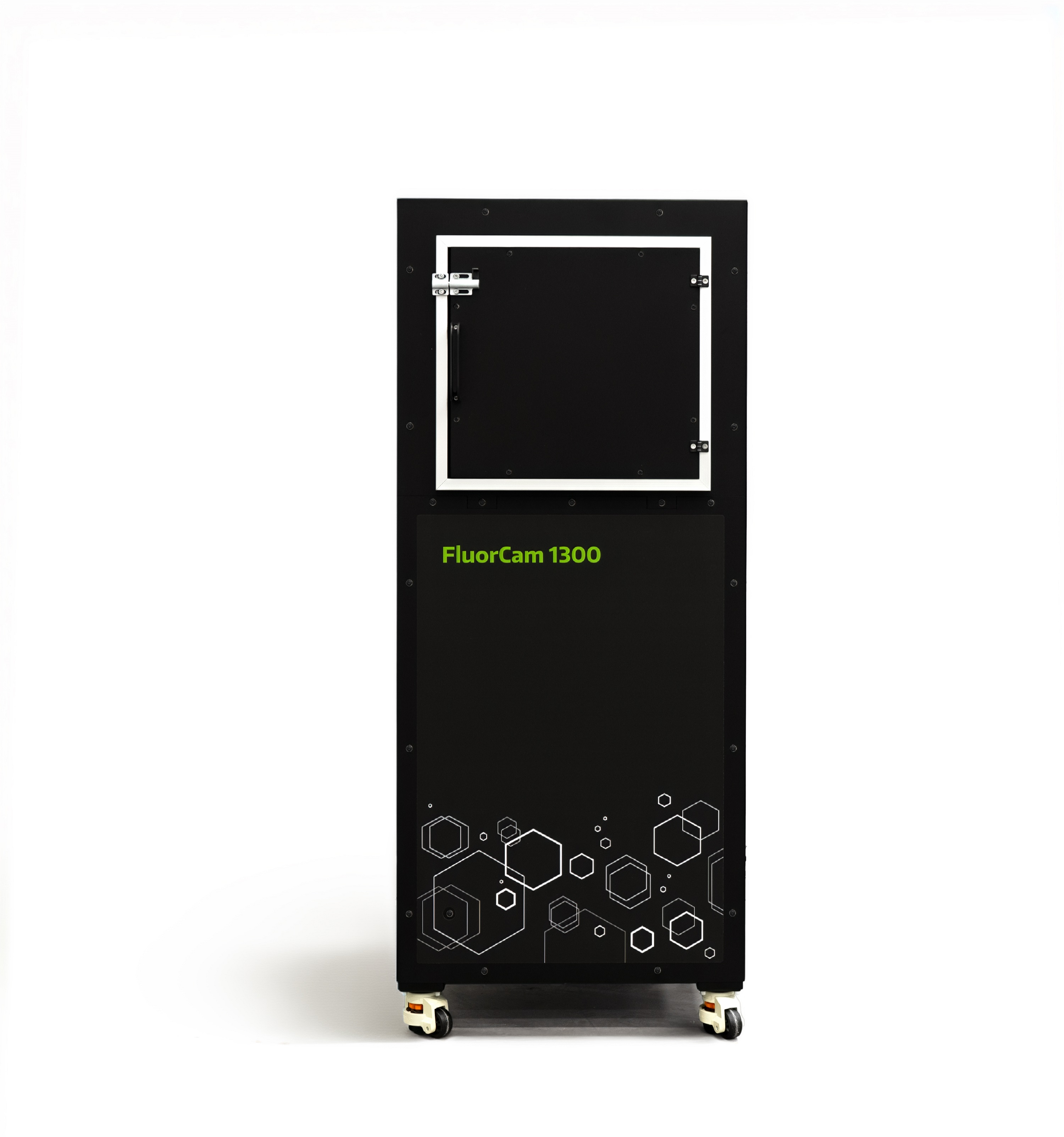

Inverted Flat FluorCam FC 1300-I/2020

The FC 1300-I/2020 is a stand-alone inverted fluorescence imaging system housed in a black FluorCam shell (dimensions: 652 × 1455 × 665 mm, weight: approx. 100 kg) specifically designed for flat samples, including microtiter plates (MTPs), Petri dishes, and detached leaves. It is particularly well suited for high-throughput experiments using 96- and 384-well microplates, making it an effective tool for studies of algae, cyanobacteria, and other microorganisms or cultures grown in microplates. The system provides highly uniform bottom illumination, ensuring consistent excitation across the entire imaging area for reliable quantitative fluorescence measurements. It offers a guaranteed field of view of 120 × 120 mm and includes a dedicated holder for 12 × 12 cm Petri dishes and microplates, located within a dark adaptation compartment positioned above the optical system. The FC 1300-I/2020 is equipped with a high-resolution camera, a chlorophyll fluorescence emission filter, and a bottom LED illumination panel providing uniform excitation. Delivered as a complete setup, the system includes a control PC, the FluorCam10 comprehensive software package, and a user’s guide. An extended version for fluorescent protein imaging is also available as the Inverted Flat FluorCam FC 1300-I/2020-6C with Advanced Multi-Excitation Module.

Closed Flat FluorCam FC 1300-C/3535
FluorCam 1300-C/3535 is a stand-alone system that extends the capabilities of the FluorCam series by enabling imaging with a larger field of view, up to 35 × 35 cm, and accommodating plants up to 80 cm in height. It features a white FluorCam shell (dimensions: 1,200 × 1,900 × 1,150 mm) with a left-hand door for easy access and an adjustable shelf system with a tray holder. The system includes a high-resolution camera providing a guaranteed 350 × 350 mm field of view, a chlorophyll fluorescence emission filter, and a flat LED light panel offering red-orange, white, and far-red excitation lights. Additionally, it comes with a control PC, the FluorCam10 comprehensive software package, and a user’s guide, ensuring a complete setup for applied plant research. This model is ideal for imaging larger plants or experimental setups requiring a broader imaging area.

Closed Flat FluorCam FC 1300-C/3535-6C with Multi-Excitation Module
This enhanced stand-alone version combines standard chlorophyll fluorescence assessments with the measurement of various other fluorescence or reflectance signals. It features a black FluorCam shell (dimensions: 1,200 × 1,900 × 1,150 mm) with a left-hand door for easy access and a measuring compartment designed for plants up to 80 cm in height. The system includes an adjustable shelf system with a tray holder and a flat LED light panel that offers multiple LED-derived light sources, including red-orange, white, far-red, UV, royal blue, blue, cyan, green, and amber. Equipped with a high-resolution camera providing a guaranteed 350 × 350 mm field of view, a motorized, software-controlled filter wheel, and chlorophyll and GFP fluorescence filters, this model also includes a control PC and the FluorCam10 software package. Customization options include up to five additional emission filters or a Multicolor Module for expanded research capabilities. This version is specifically designed for advanced studies involving larger, wild-type or genetically modified plants, and their involvement in pathogenic or symbiotic interactions, offering flexibility for diverse research needs.

Built-in Options and Accessories

12 Mpx camera for High-Resolution Imaging
High-resolution 12 Mpx CMOS camera available as an alternative to the standard CCD TOMI-2 camera. Ideal for detailed imaging of roots and other plant structures.

Advanced Multi-Excitation Module
Expands conventional chlorophyll fluorescence measurements with the ability to detect fluorescent proteins and dyes, including GFP, YFP, RFP, mCherry, and fluorescein. The module includes six additional LED excitation sources (UV, Royal Blue, Blue, Cyan, Green, and Amber) and a motorized 7-position filter wheel for flexible fluorescence imaging.

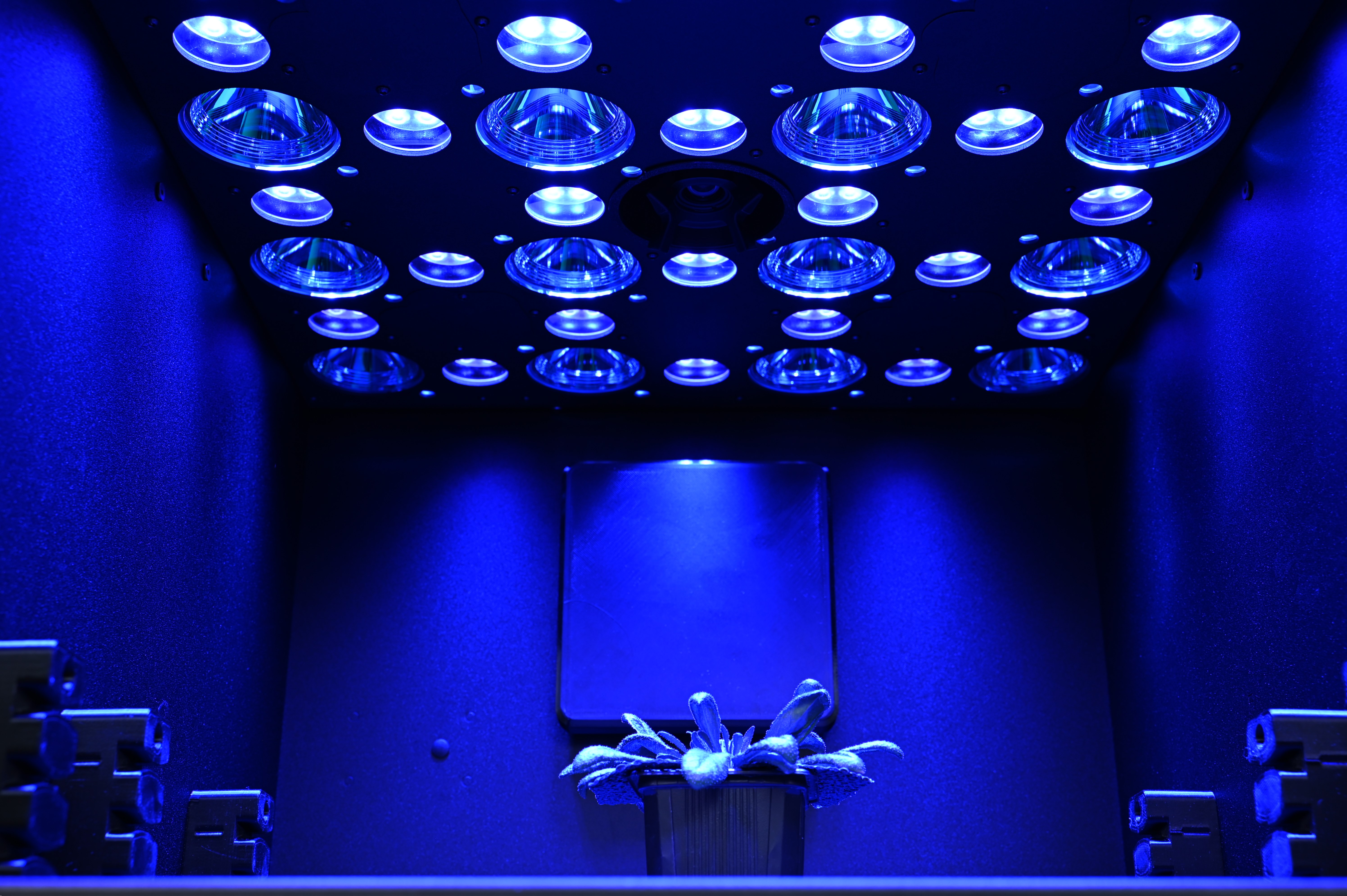

Blue Measuring Light
Optional configuration replacing the standard orange-red measuring and actinic LEDs with royal blue (450 nm) LED sources, providing alternative excitation conditions for specialized fluorescence studies, such as research on green algae.

Fast TOMI-3 camera for OJIP measurements
High-speed CMOS camera with an adjustable frame period from 20 to 2000 µs. Recommended for fast fluorescence induction (OJIP) measurements requiring fast frame acquisition.

Fast Fluorescence Induction (OJIP) Module
Dedicated module for recording fast chlorophyll fluorescence induction kinetics (OJIP curves). Combines specialized electronics and measurement protocols to enable detailed analysis using variable-delay light exposures.

Filter Wheel
Software-controlled 7-position filter wheel supporting up to seven interchangeable emission filters for versatile multi-band fluorescence imaging.

Light upgrade
Increases actinic light intensity up to 2 500 µmol·m⁻²·s⁻¹ and/or saturating pulse intensity up to 8 000 µmol·m⁻²·s⁻¹, enabling experiments requiring high light irradiance.

Light customization
Reduced Actinic 1 light intensity optimized for research on algae, cyanobacteria, and lichens.

Multicolor Plant Module
Specialized module for plant emission spectrum analysis according to Lichtenthaler and Buschmann. Includes four emission filters (blue, green, red and infrared) and dedicated software for advanced spectral characterization.

FluorCam10 Software
FluorCam10 is the latest 64-bit software platform for image acquisition, analysis, and automation in FluorCam systems. Designed for both kinetic and steady-state fluorescence measurements, it provides powerful tools for experiment control, image segmentation, data visualization, and export.

Several optional software extensions are available to expand FluorCam10’s capabilities:

  • Advanced Multiple Function – Automates repeated execution of a single measuring protocol
  • Advanced Circadian Function – Enables a two-phase sequence (e.g., light and dark), each using a different protocol, ideal for circadian rhythm studies
  • Advanced Multi-phase Function – Supports up to ten individually programmable phases, offering full flexibility for complex experimental designs (includes the functionality of both the above options)
  • Comprehensive Module for Image Acquisition & Data Management – Provides a fully automated environment for experiment scheduling, data storage in SQL format, and advanced batch analysis

FluorCam10 is included with every new FluorCam system and is also available separately on USB, with or without a pre-installed PC.

Optional accessories

Thermoregulator TR 6000 with Thermoblock TB-48W for FC 1300
The Thermoregulator TR 6000 expands the capabilities of the Closed FluorCam FC 1300-C by providing precise temperature control for up to 48 samples. Available for FC 1300-C systems equipped with a modified chassis. More about Thermoregulator.

Transillumination Light Shelf
Removable transillumination shelf for black-and-white imaging of roots and other plant structures. Easily installed or removed to adapt the imaging chamber to different experimental requirements. More about Transillumination.

Shelves for Precise Sample Positioning
A range of positioning shelves designed to ensure accurate and reproducible sample placement during long-term and repeated measurements. More about Sample Positioning.

Additional Protective Glasses
Radiation safety glasses designed to protect against high-intensity LED exposure. Each pair includes side shields and protective filters. One pair is included with each FluorCam system.

Barcode Reader with Supporting Software
Integrated barcode reader with dedicated FluorCam software for automated sample identification, tracking, and data management.

Shelves for Precise Sample Positioning


A range of positioning shelves and interchangeable holders designed to ensure accurate, reproducible sample placement in the FluorCam FC 1300-C/2020. These accessories are particularly valuable for long-term experiments, developmental studies, and automated high-throughput measurements performed with the Comprehensive Module for Automatic and Programmable Image Acquisition and Data Management.

The positioning system can be used with both epi-illumination and transillumination setups.

Key Features

  • Reproducible sample positioning for time-series experiments
  • Optimized placement within the camera field of view
  • Positioning within the device’s homogeneous illumination area
  • User-friendly handling of plant pots, Petri dishes, and microplates
  • Fast exchange of holders using a convenient pin-based system
  • Secure shelf positioning ensured by magnetic fixation
  • Compatible with both epi-illumination and transillumination measurements

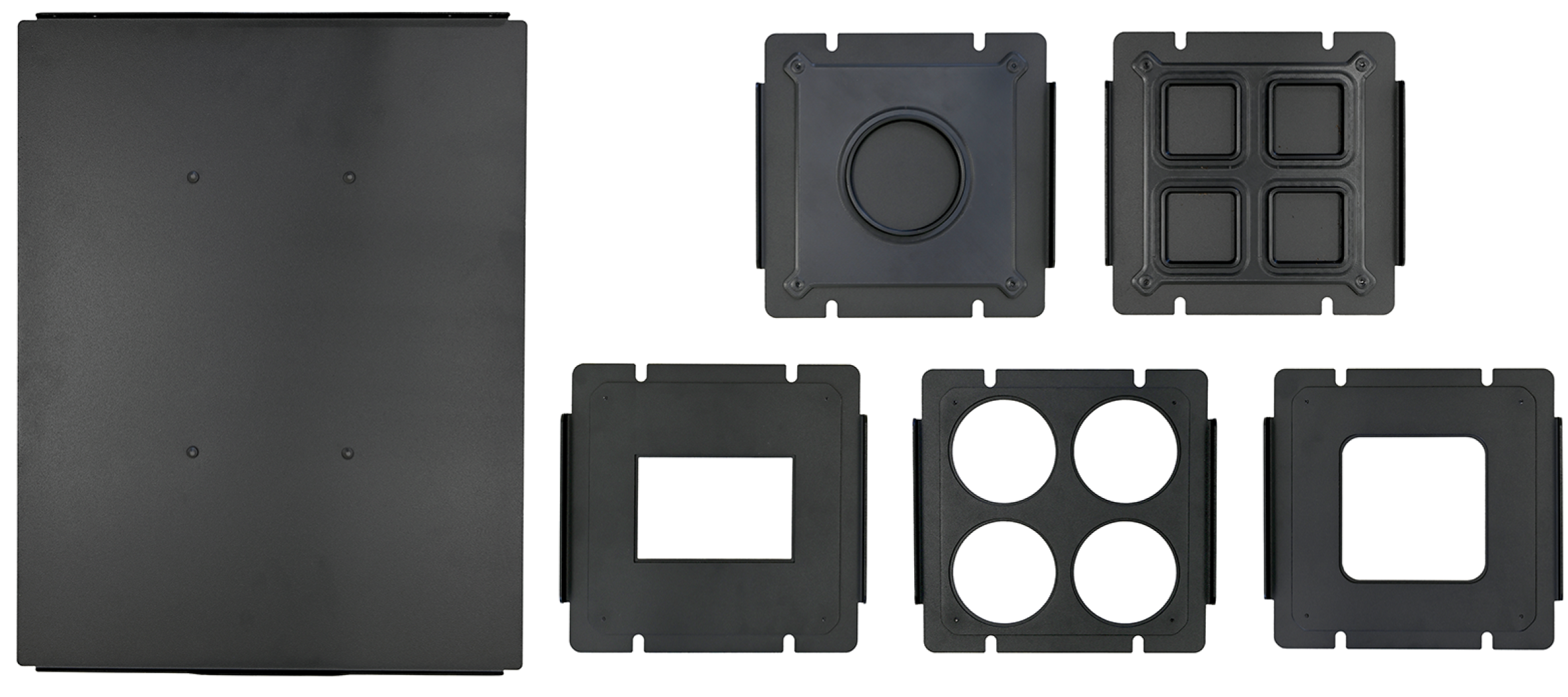

Set of Holders and Shelf for Epi-illumination

Includes a positioning shelf with fixation pins and five interchangeable holders:

  • 1 × plant pot (Ø 90 mm)
  • 4 × plant pots (56 × 56 mm)
  • Microplate
  • 4 × Ø 90 mm Petri dishes
  • Square Petri dish (120 × 120 mm)

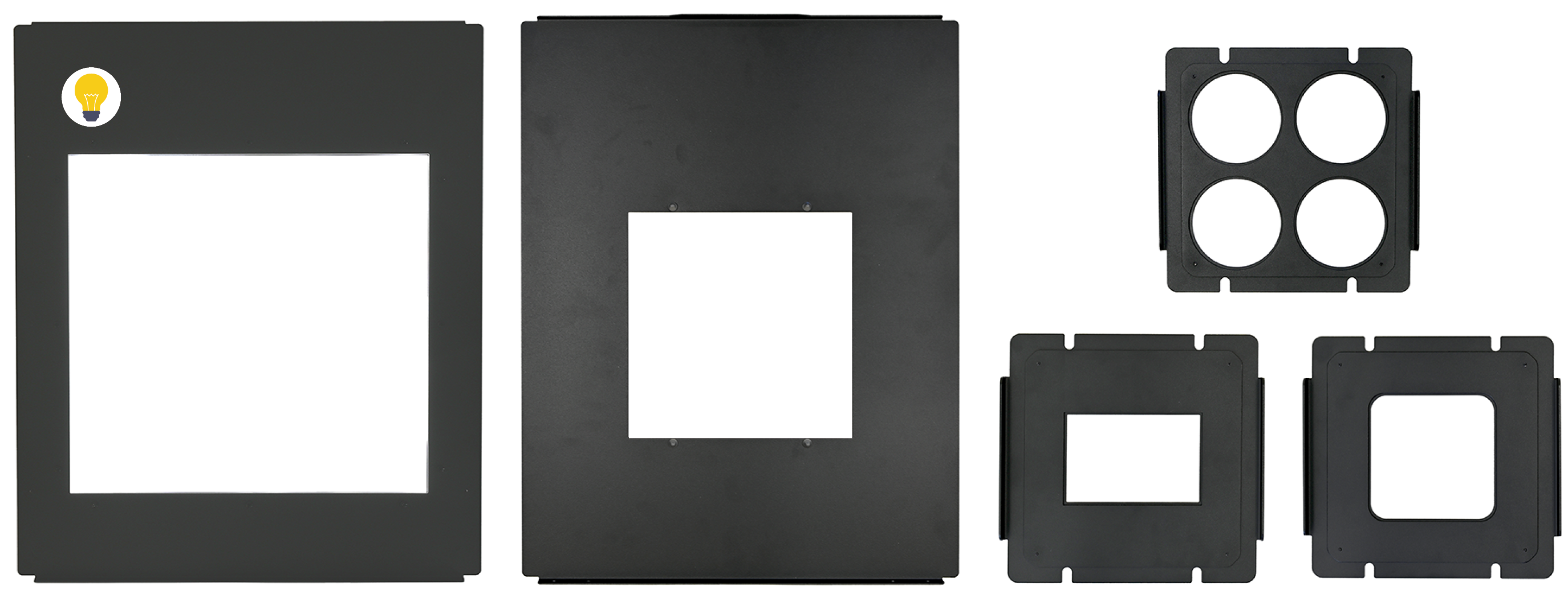

Set of Holders and Shelf for Transillumination

Includes a positioning shelf with fixation pins, a Transillumination Light, and three interchangeable holders:

  • 4 × Ø 90 mm Petri dishes
  • Microplate
  • Square Petri dish (120 × 120 mm)

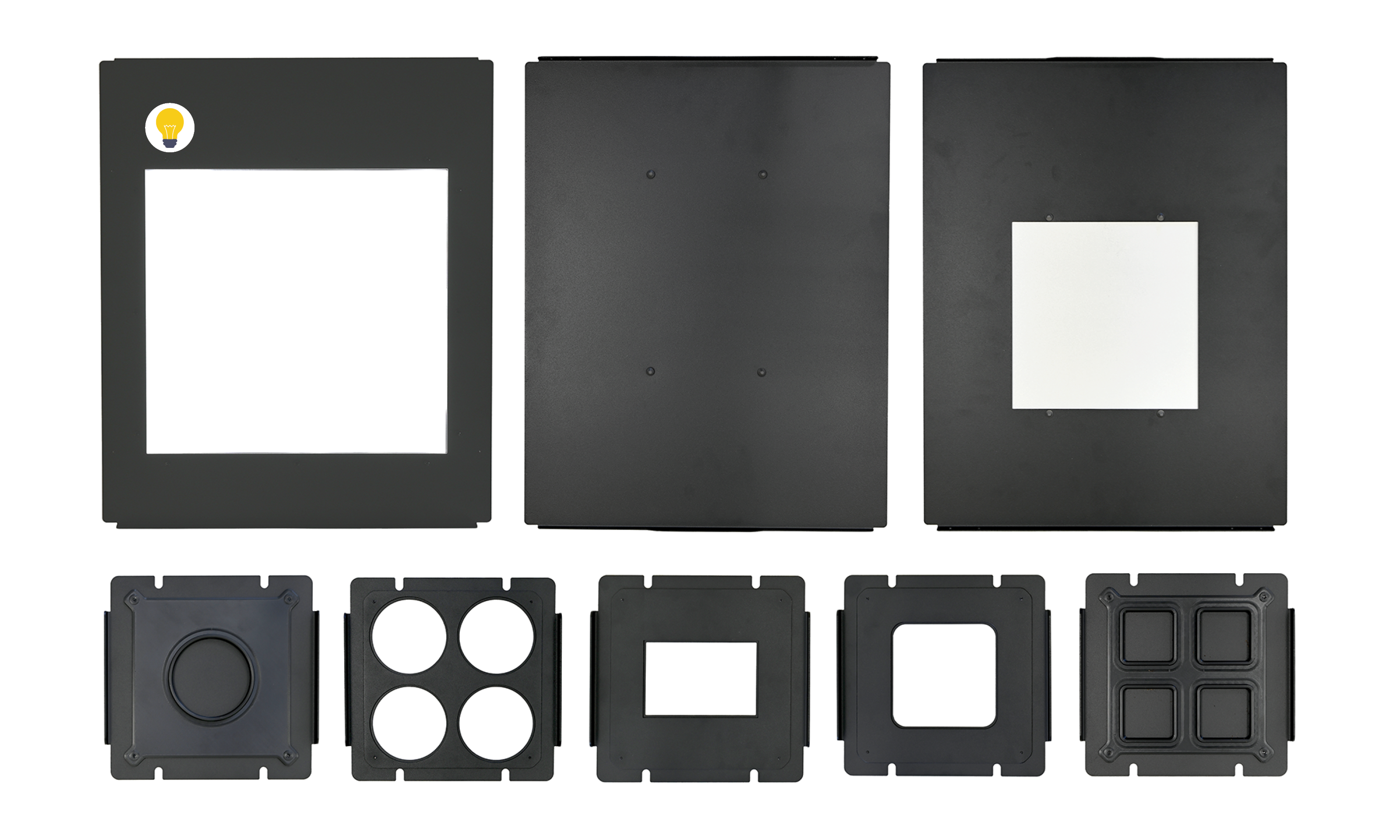

Complete Set for Epi- and Transillumination

Comprehensive solution including two positioning shelves with fixation pins, Transillumination Light, and five interchangeable holders:

  • 1 × plant pot (Ø 90 mm)
  • 4 × Ø 90 mm Petri dishes
  • Microplate
  • Square Petri dish (120 × 120 mm)
  • 4 × plant pots (56 × 56 mm)


Compatibility

All positioning shelf sets are compatible with FC 1300-C/2020 devices.

Configurations including the Transillumination Light require:

  • Advanced Multi-Excitation Module
  • Camera equipped with a filter wheel
  • Internal connector for Transillumination Light integration

If you are considering adding the Transillumination Light in the future, please let us know when ordering your FC 1300 system. This allows us to equip your device with the necessary modifications and ensure seamless future integration.

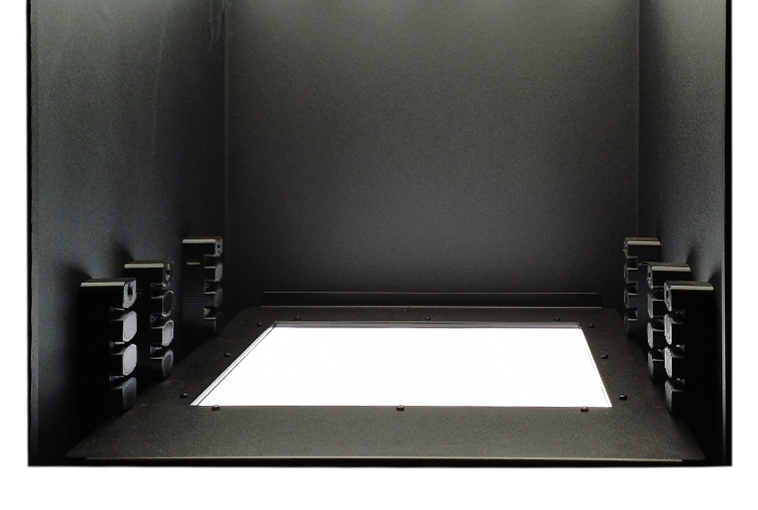

Transillumination Light


The Transillumination Light expands the capabilities of the FC 1300-C/2020 by enabling high-contrast black-and-white imaging of roots, leaves, and other plant structures. Designed for easy installation and removal, it provides a flexible solution for experiments requiring both transillumination imaging and fluorescence measurements.

Key Features

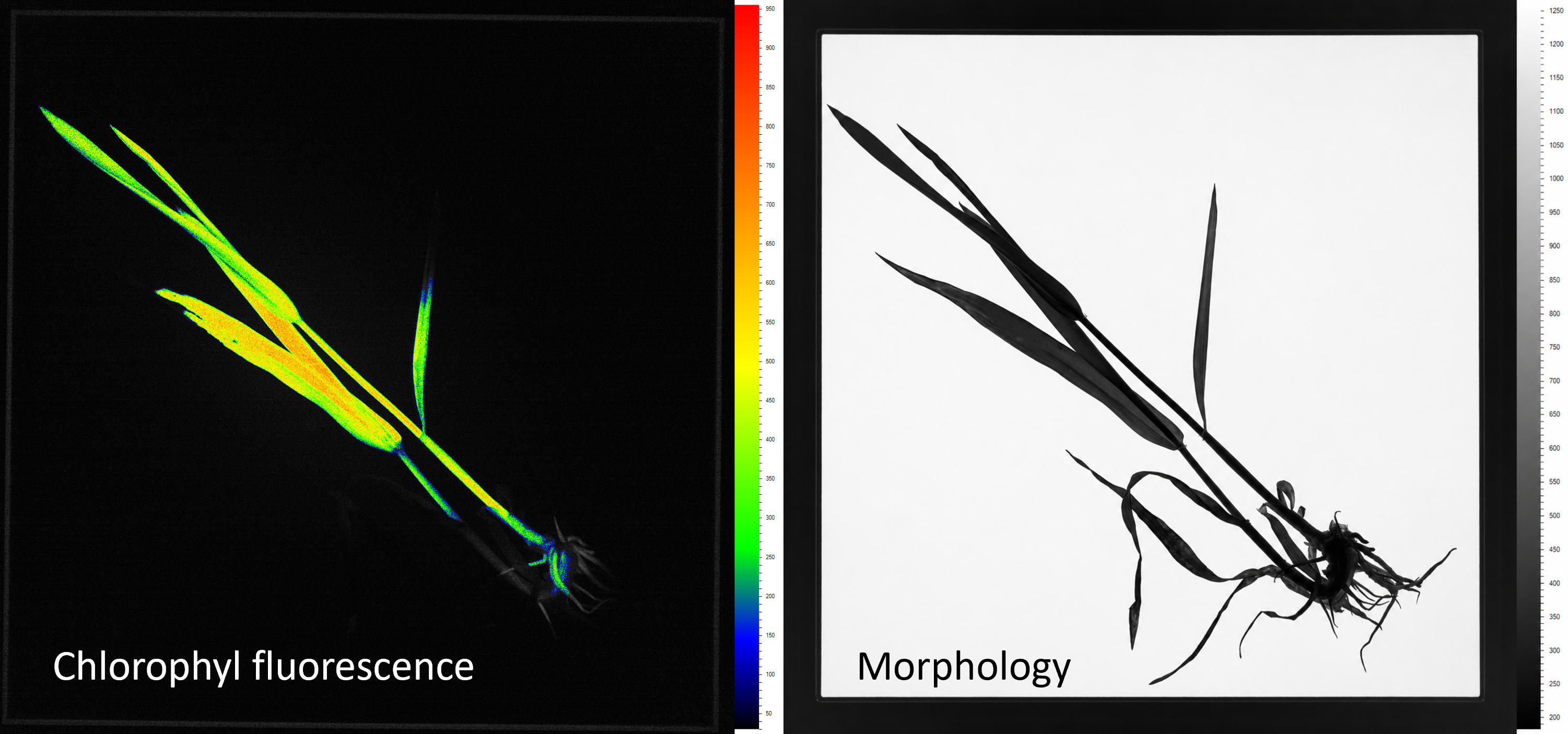

  • High-contrast black-and-white imaging of plant samples and structures
  • Optimized sample positioning within the camera field of view
  • Uniform illumination across the imaging area
  • Removable design for quick installation and handling
  • Fully compatible with standard epi-illumination fluorescence measurements
  • Supports custom sample holders and transparent trays for specialized applications

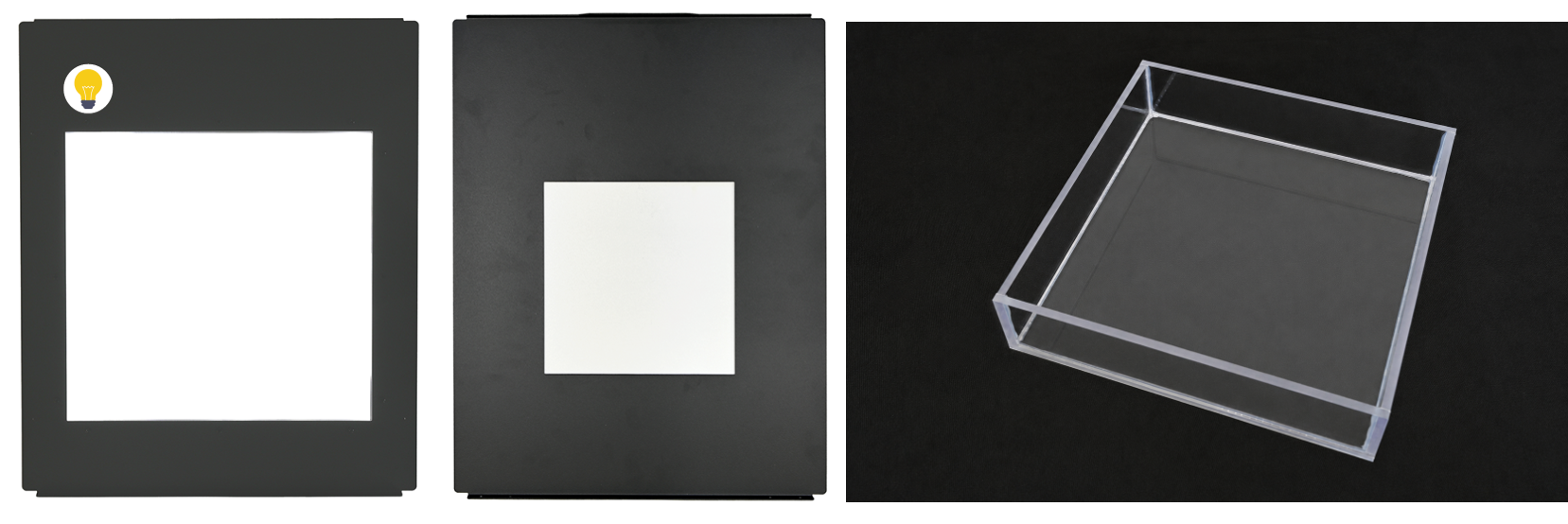

Basic Transillumination Set

The standard set includes:

  • Transillumination Light
  • Positioning shelf

Transparent trays can be supplied upon request to accommodate specific experimental requirements.

Transillumination light is also included in Set of Holders and Shelf for Transillumination and Complete Set for Epi- and Transillumination (optional).

Compatibility

Configurations including the Transillumination Light require:

  • Advanced Multi-Excitation Module
  • Camera equipped with a filter wheel
  • Internal connector for Transillumination Light integration

If you are considering adding the Transillumination Light in the future, please let us know when ordering your FC 1300 system. This allows us to equip your device with the necessary modifications and ensure seamless future integration.

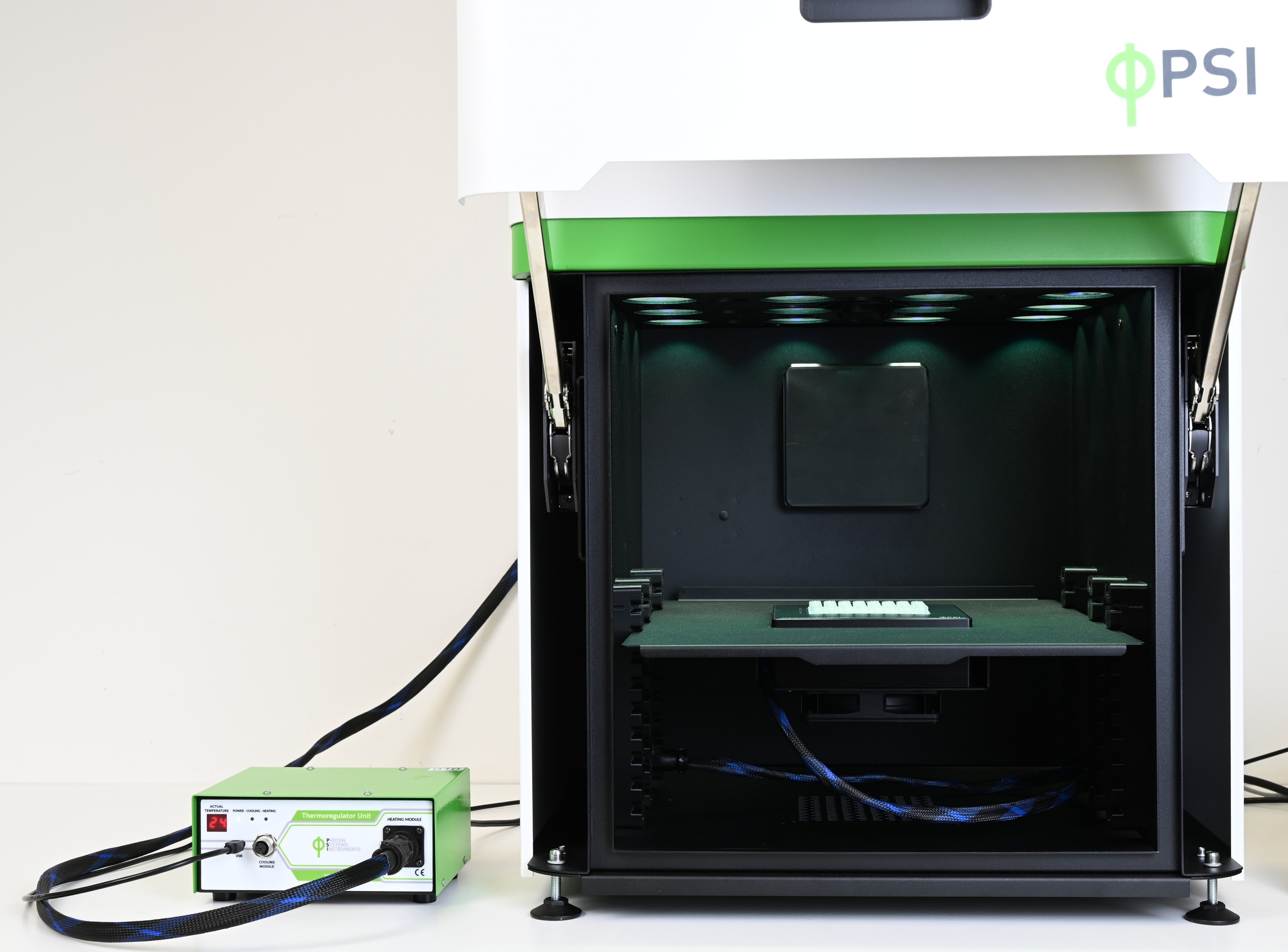

Thermoregulator TR 6000 with Thermoblock TB-48W for FC 1300


The Thermoregulator TR 6000 with Thermoblock TB-48W expands the capabilities of the Closed Flat FluorCam FC 1300-C/2020 by providing accurate and reproducible temperature control for up to 48 samples arranged in a 6 × 8 format.

Designed for thermostability studies, the system enables precise thermal regulation across a temperature range of 15°C to 75°C, allowing researchers to investigate plant responses under controlled environmental conditions.

Key Features

  • Temperature control from 15°C to 75°C
  • Capacity for 48 samples in a 6 × 8 format
  • Powerful Peltier-based heating and cooling system
  • Fast temperature ramp rates of up to 5°C/min
  • User-friendly Thermoregulator GUI
  • Manual and automated protocol operation modes

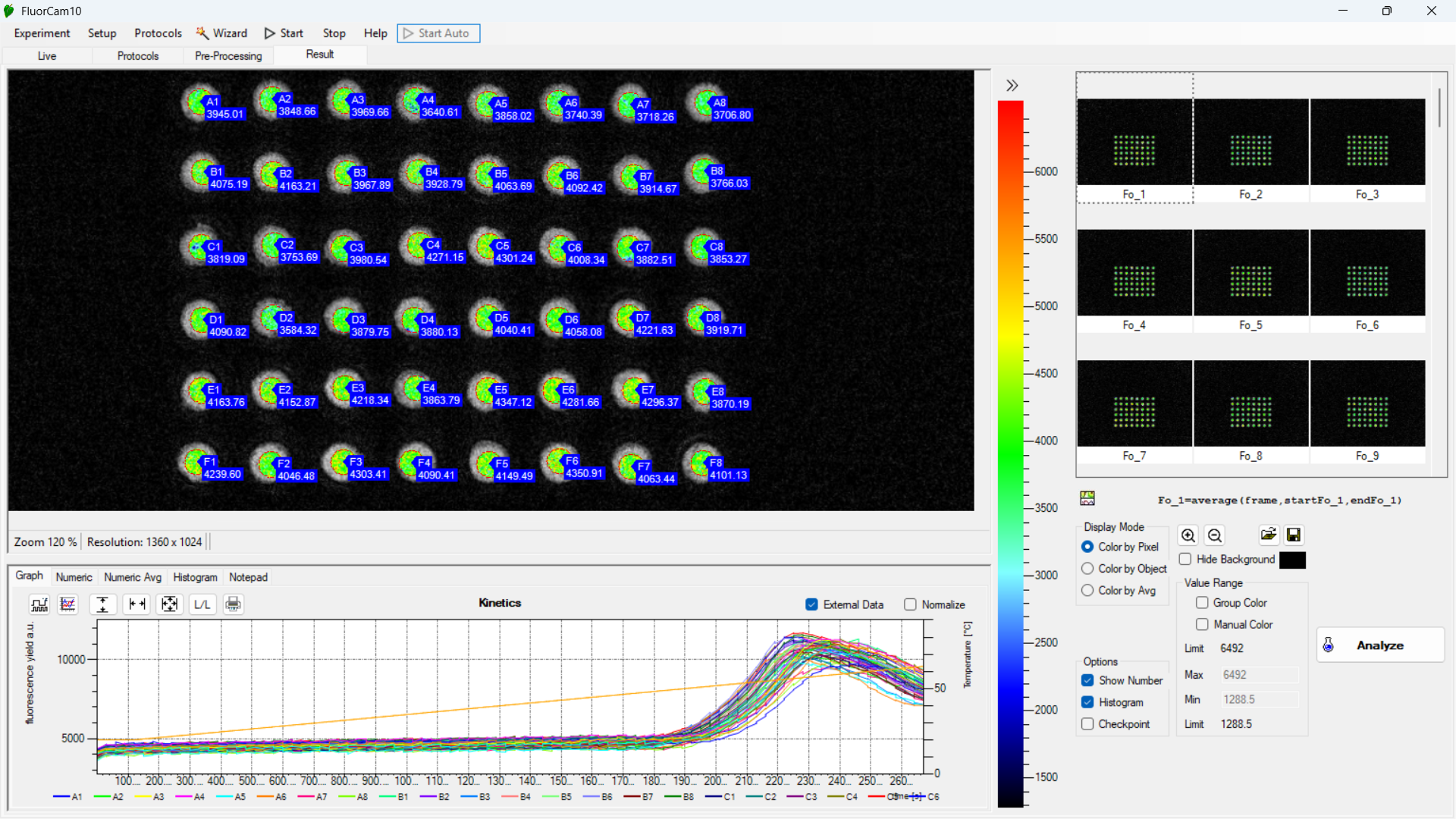

  • Seamless cooperation with FluorCam 10 software (synchronization of temperature control with fluorescence imaging protocols)
  • Automatic data logging for reliable and reproducible experiments
  • Optional plastic inserts increasing well volume from 400 µL to 850 µL

The Thermoregulator GUI allows users to operate the system manually or execute predefined temperature protocols with ease. Full integration with FluorCam 10 software enables synchronized temperature regulation and fluorescence measurements, streamlining experimental workflows and ensuring consistent data acquisition.

Automatic data logging and rapid temperature transitions support high-throughput applications while maintaining experimental reproducibility.

Compatibility

The Thermoregulator TR 6000 with Thermoblock TB-48W for FC 1300 is available exclusively for modified FC 1300-C/2020 systems equipped with:

  • An internal connector for TR 6000 integration
  • Chassis modifications required for installation and operation of the TR 6000 shelf

If you are considering adding the TR 6000 to your workflow in the future, we kindly ask that you let us know when placing your FC 1300 order. This allows us to equip your system with the required modifications and ensure seamless future integration.

Nový box

Pricing

Closed Flat FluorCam 1300

Version Characteristics Price
Benchtop Closed Flat FluorCam FC 1300-C/2020 Suitable for samples up to 20 cm high, and 20 cm × 20 cm wide. Includes a shell (562 × 752 × 560 mm), flat panel illumination with orange-red, cool white and far-red LED-based light sources, a high-resolution camera (1.4 MPx), a chlorophyll fluorescence filter, control PC with software package, connecting cables, and user's guide. 29,990 €
Stand-Alone Closed Flat FluorCam FC 1300-L/2020 Suitable for samples up to 100 cm high, and 20 cm × 20 cm wide. Includes a shell (560 × 1,755 × 560 mm), flat panel illumination with orange-red, cool white and far-red LED-based light sources, a high-resolution camera (1.4 MPx), a chlorophyll fluorescence filter, control PC with software package, connecting cables, and user's guide. 32,990 €
Inverted Flat FluorCam FC 1300-I/2020 Designed for bottom imaging of flat samples up to 12 × 12 cm, this system is optimized for use with microplates and square Petri dishes. The unit includes a shell (652 × 1,455 × 665 mm), flat panel illumination with orange-red, cool white and far-red LED-based light sources, a high-resolution camera (1.4 MPx), a chlorophyll fluorescence filter, control PC with software package, connecting cables, and user's guide. 29,990 €
Stand-Alone Closed Flat FluorCam FC 1300-C/3535 Suitable for samples up to 80 cm high, and 35 cm × 35 cm wide. Includes a shell (1,200 × 1,900 × 1,150 mm), flat panel illumination with orange-red, cool white and far-red LED-based light sources, a high-resolution camera (1.4 MPx), a chlorophyll fluorescence filter, control PC with software package, connecting cables, and user's guide. Please inquire

Accessories

12 Mpx camera
for High-Resolution Imaging		 Optional high-resolution 12 MPx CMOS camera replacing the standard camera. Please inquire
Advanced Multi-Excitation Module
(field of view 20 x 20 cm)		 Enhances conventional chlorophyll fluorescence measurements by enabling detection of additional fluorescent proteins or dyes (e.g., GFP, YFP, RFP, mCherry, fluorescein). Includes six additional LED-based lights (UV, Royal Blue, Blue, Cyan, Green, Amber) and a 7-position motorized filter wheel with two filters for chlorophyll and GFP fluorescence detection. Suitable for Closed Flat FluorCam FC 1300/2020. 9,990 €
Advanced Multi-Excitation Module
(field of view 35 x 35 cm)		 Enhances conventional chlorophyll fluorescence measurements by enabling detection of additional fluorescent proteins or dyes (e.g., GFP, YFP, RFP, mCherry, fluorescein). Includes six additional LED-based lights (UV, Royal Blue, Blue, Cyan, Green, Amber) and a 7-position motorized filter wheel with two filters for chlorophyll and GFP fluorescence detection.Suitable for Closed Flat FluorCam FC 1300/3535. Please inquire
Blue Measuring Light Optional configuration replacing the standard orange-red measuring and actinic LEDs with royal blue (450 nm) LED sources. Please inquire
Fast TOMI-3 camera for OJIP measurements Optional high-speed CMOS camera optimized for fast fluorescence induction (OJIP) measurements replacing the standard camera. Please inquire
Multicolor Plant Module* Measures autofluorescence in plants according to Lichtenthaler and Bushmann. Includes four emission filters (blue, green, red, and far-red) and a software package extension. Requires Advanced Multi-Excitation Module. 1,990 €
Light Upgrade Increases actinic and/or saturating pulse light intensity for high-irradiance applications. Please inquire
Light Customization Reduced Actinic 1 light intensity optimized for algae, cyanobacteria, and lichen research. Please inquire
Emission Filters* Tailored for required fluorescence measurements 490 €/each
7-Position Filter Wheel Motorized filter wheel allows for imaging in different emission bands (software controlled). 3,770 €
Thermoregulator TR6000 Provides precise thermal control of biological specimens. Includes a Control Unit, 48-well Thermal Block, and Thermoregulator GUI for the synchronization with FluorCam10 experiments. 9,990 €
Fast Fluorescence Induction (OJIP) Module Tracks fast fluorescence induction (OJIP curve) with a pump & probe method. Includes special electronic board and measuring protocol. 7,455 €
FluorCam10 Software (without Laptop) Latest 64-bit control software for FluorCam devices, enhancing data analysis, visualization, and data export capabilities. Delivered on a USB flash drive. (Requirements: PC with Win10 or higher, a decent x64-based processor, 16 GB RAM, storage 1 TB, a Gigabit Ethernet network card.) 2,700 €
FluorCam10 Software with Pre-installed Laptop* Latest 64-bit control software for FluorCam devices, enhancing data analysis, visualization, and data export capabilities. Delivered on a pre-installed laptop. 3,900 €
Advanced Multiple Function for FluorCam10 Software This software extension allows automated triggering of a single measurement protocol. Ideal for standardized data collection, this feature simplifies experimental workflows by automating protocol initiation. 490 €
Advanced Circadian Function for FluorCam10 Software This extension is specifically designed for circadian rhythm studies, enabling the automated triggering of two distinct measuring protocols—one for the daytime phase and another for the nighttime phase. This feature ensures precise, automated control over the two-phase experimental setup, making it ideal for accurately monitoring diurnal and nocturnal changes. 990 €
Advanced Multi-phase Function for FluorCam10 Software Enhances research versatility by allowing the integration and automation of multiple experimental phases, each with its own unique protocol. This extension is perfect for complex studies requiring varied conditions and sequential protocol activation. 1,690 €
Comprehensive Module for Automatic and Programmable Image Acquisition and Data Management This all-encompassing software package provides a highly flexible platform for scheduling, executing, and managing experiments. It includes automated data acquisition and sophisticated data analysis capabilities, making it ideal for high-throughput and long-term studies. 6,490 €
Set of Holders and Shelf for Epi-illumination Positioning shelf with five interchangeable sample holders. Please inquire
Set of Holders and Shelf for Transillumination Transillumination Light, positioning shelf, and three interchangeable sample holders. Please inquire
Complete Set for Epi- and Transillumination Complete positioning system including Transillumination Light, two positioning shelves, and five interchangeable sample holders. Please inquire
Basic Transillumination Set Transillumination Light and Positioning shelf. Please inquire
Additional Protective Glasses* Radiation safety glasses equipped with side cover and protective filters. One pair is included free with each device purchase. 25 €
