Closed FluorCam
Chlorophyll Fluorescence Imaging from Individual Cells to Plant Populations
About...

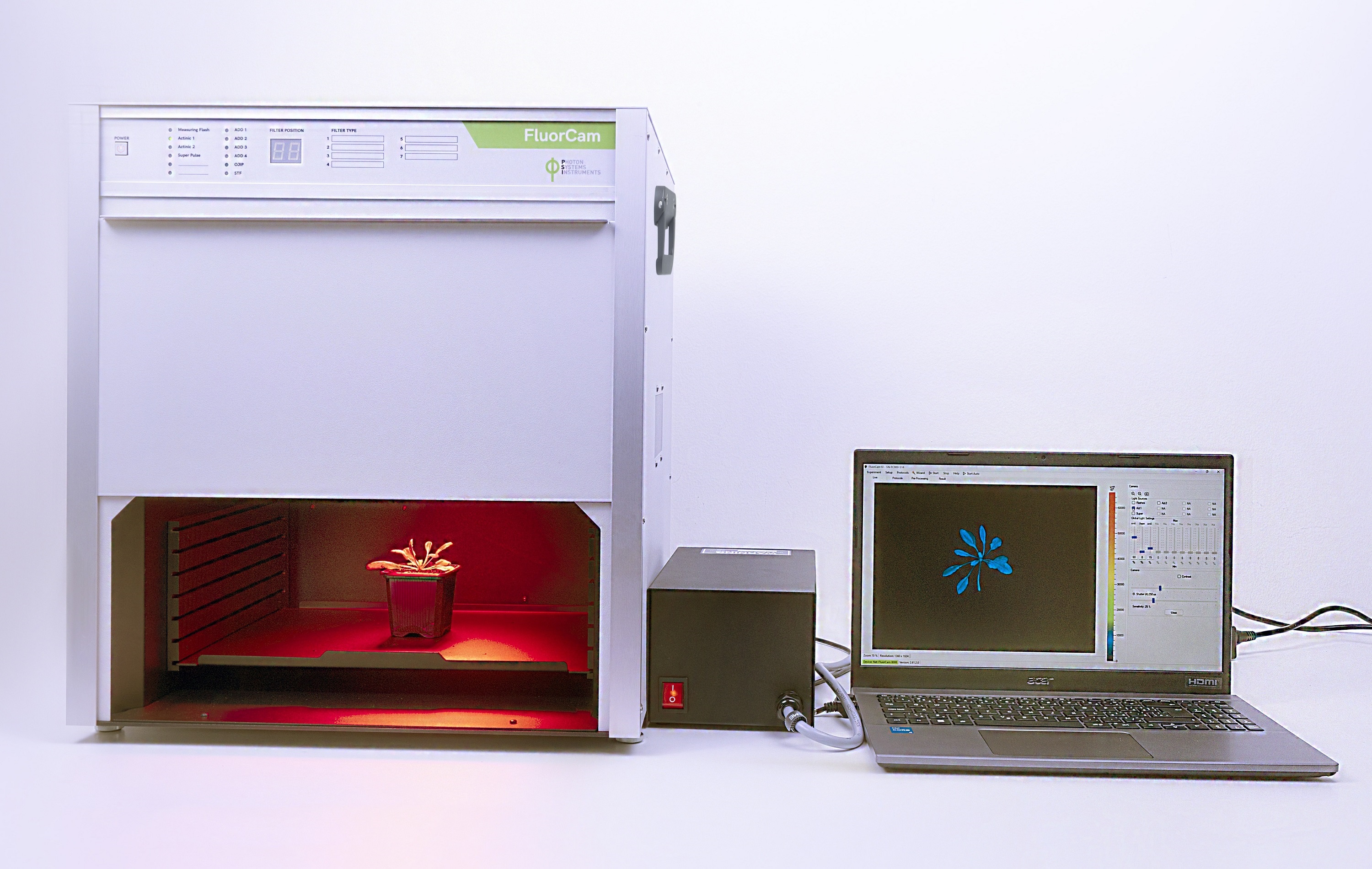

Closed FluorCam FC 800-C is a popular, best-selling system for imaging of chlorophyll fluorescence kinetics which can be extended to multispectral version allowing detection of various fluorescent signals. The standard version consists of a CCD camera and four fxed LED panels. The LED panels provide uniform irradiance over samples up to 90 × 90 mm – suitable for small plants, detached leaves, algal dilutions, etc. The system allows dark adaptation.

Key Features

  • Four super bright LED panels available in numerous wavelengths
  • Pixel Size:
  • - 6.45 µm x 6.45 µm (TOMI-2)
    - 6.60 µm x 6.60 µm (TOMI-3)


  • Dark room for adaptation

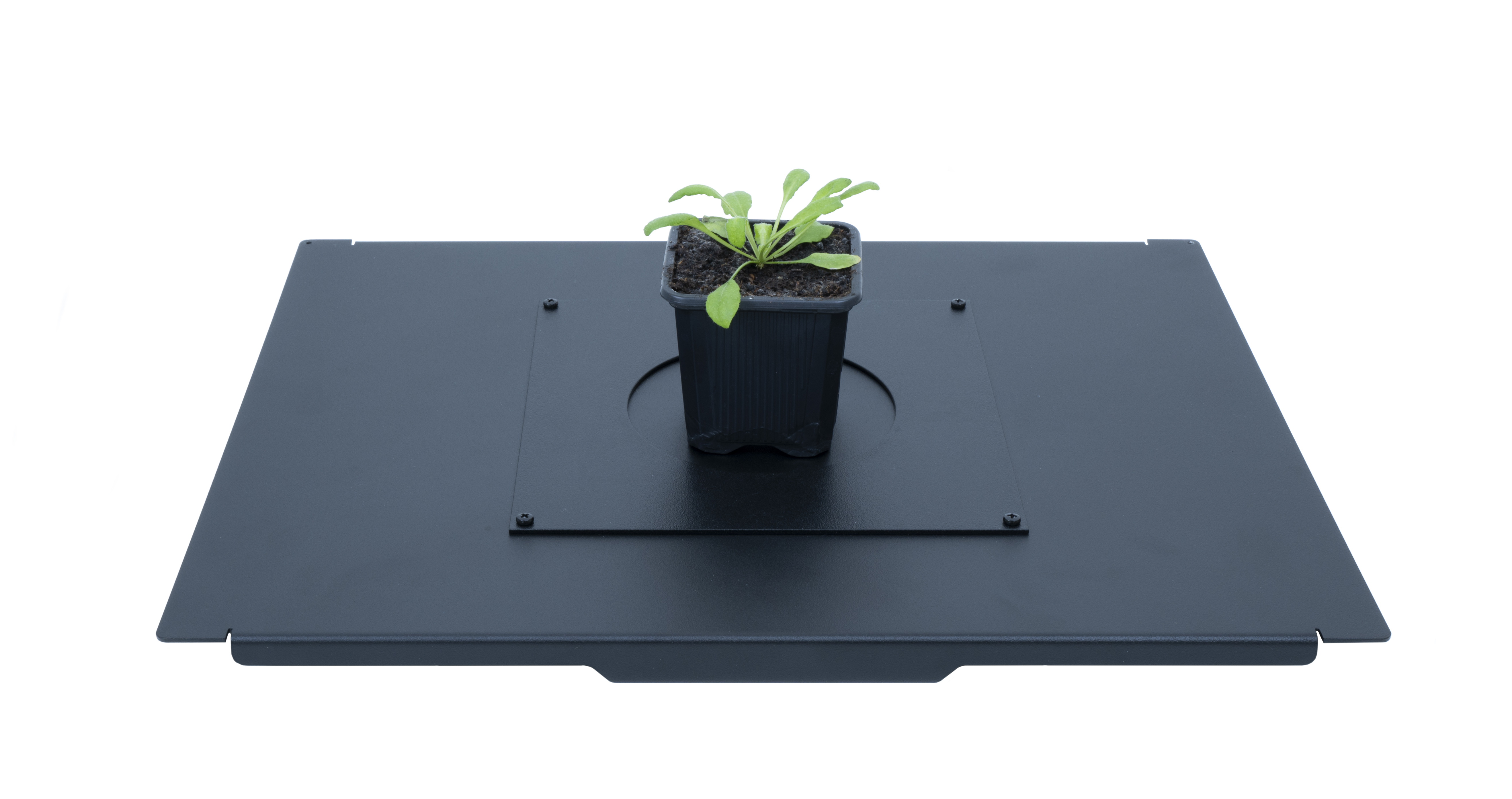

  • Adjustable shelf system for different plant sizes
  • Imaging masks for 384-well plate, 96-well plate, Petri dish, etc.
  • Supplied with a laptop computer and software
  • Additional top stand mounted LED panel (optional)

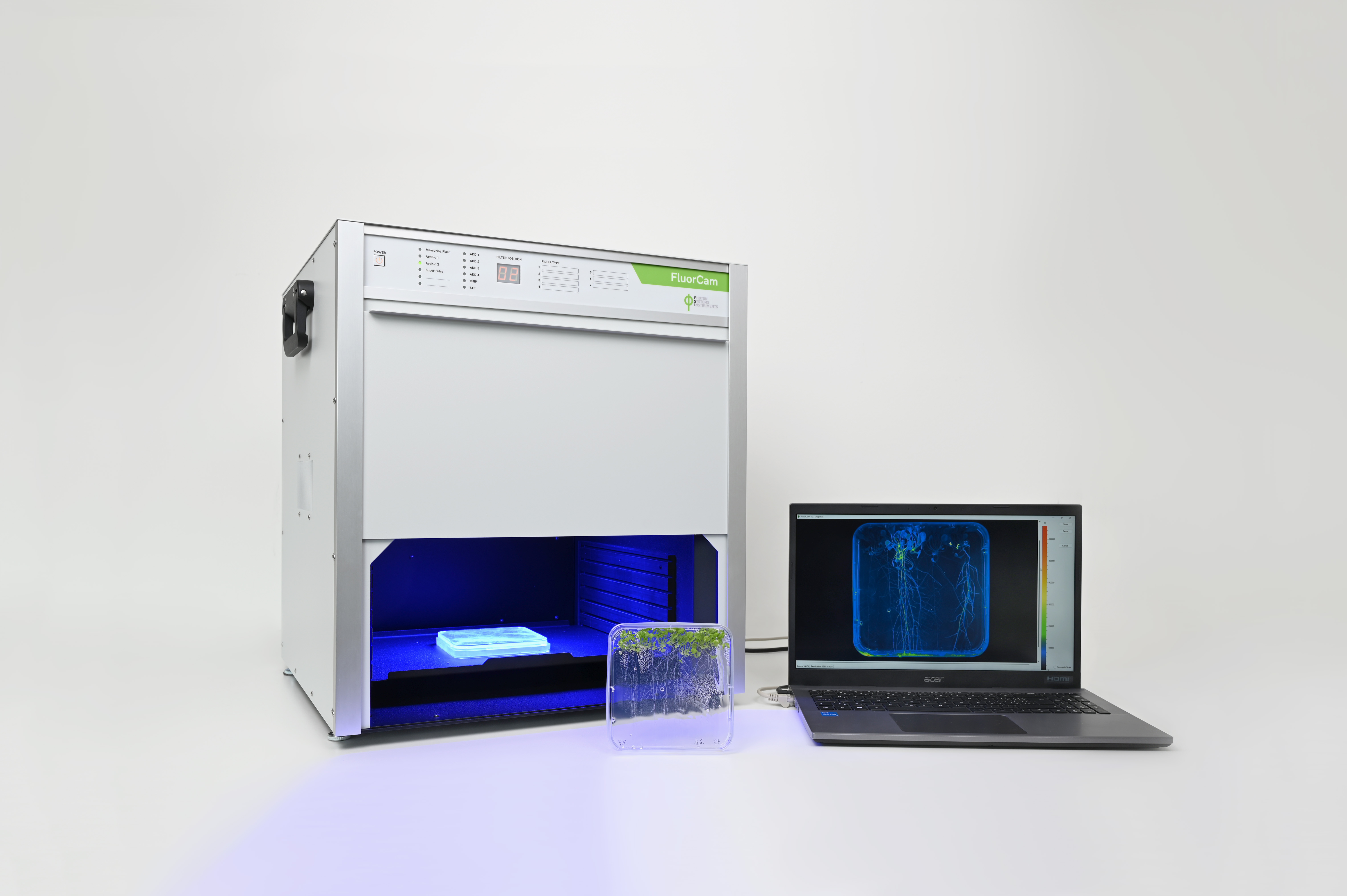

Closed FluorCam

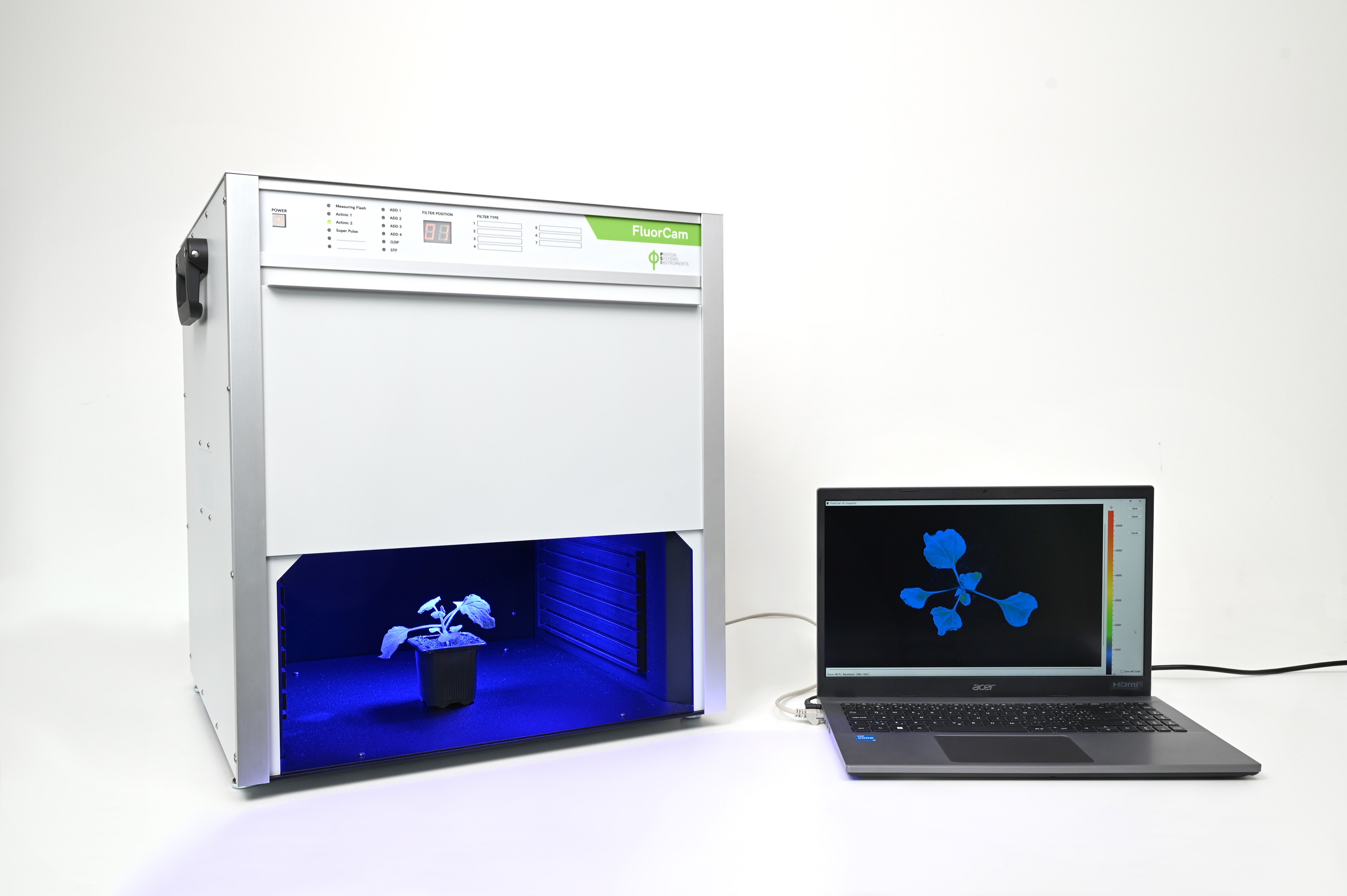

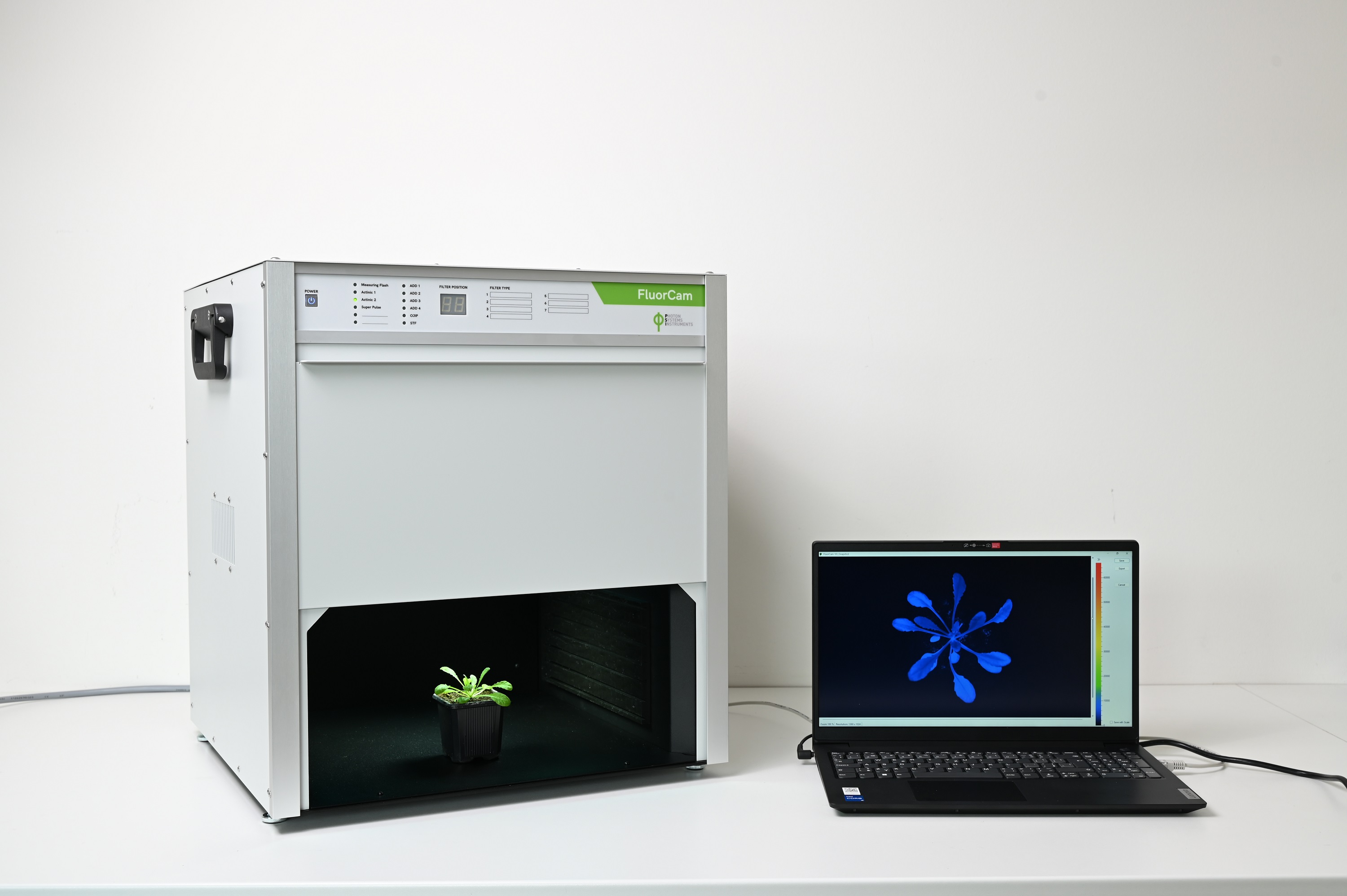

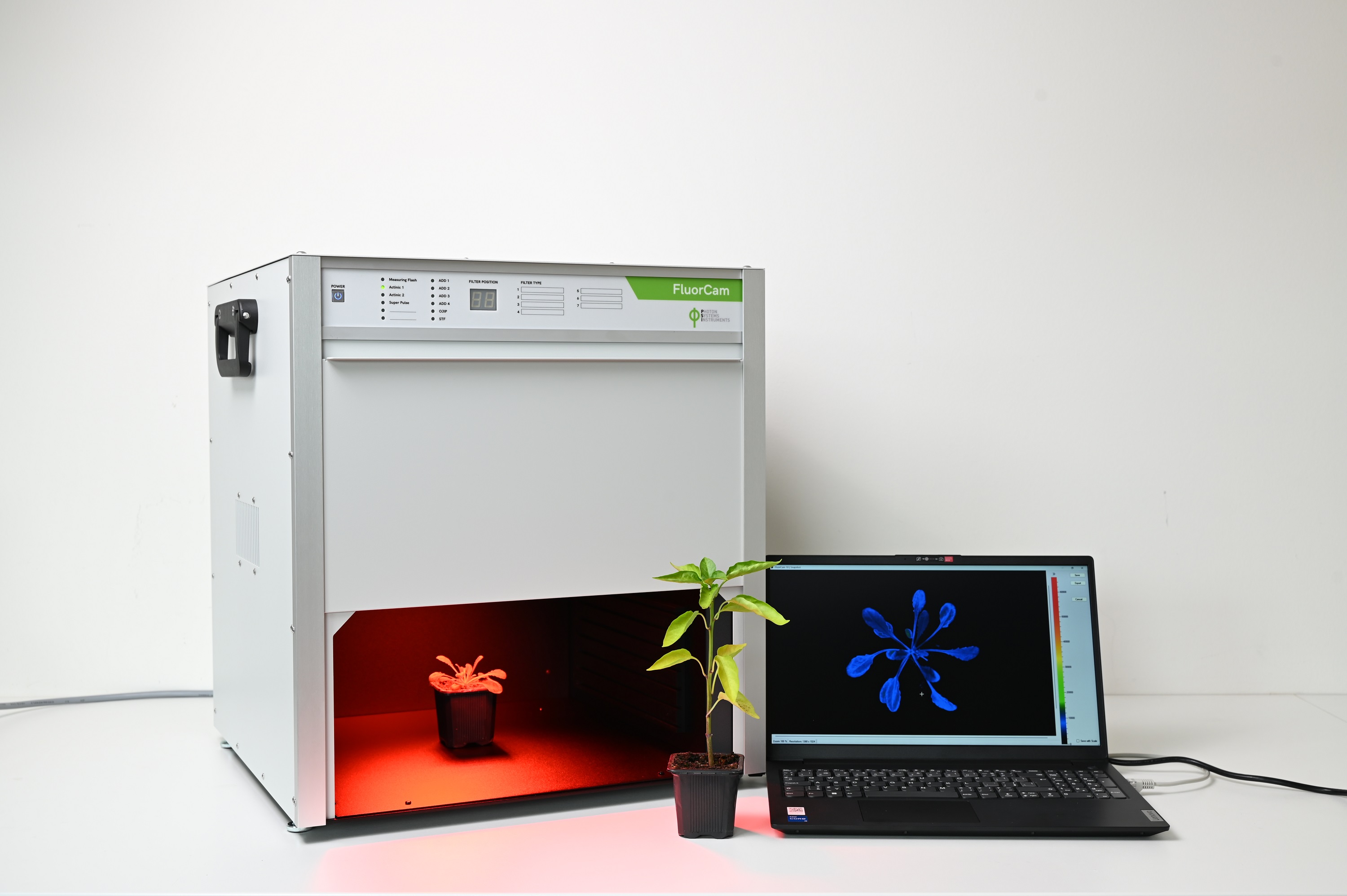

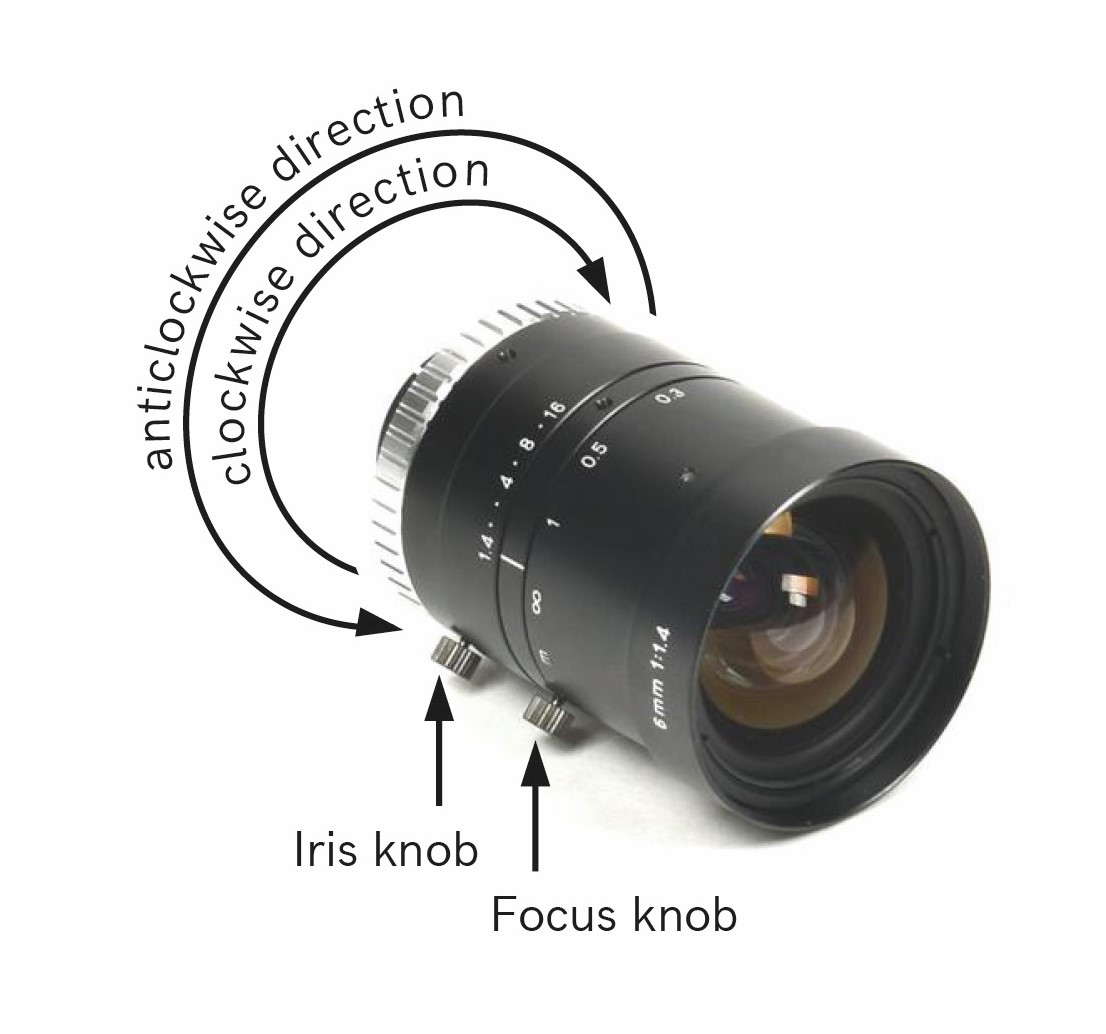

Closed FluorCam FC 800-C represents a highly innovative, robust and user-friendly world-wide used system for combined multispectral and kinetic fluorescence imaging. It consists of a CCD camera, four to five fixed LED panels (4 + 1 additional, which is not included in the standard setup) and, optionally, of a filter wheel equipped with up to 7 different emission filters. The LED panels provide uniform irradiance over an area 90 × 90 mm – suitable for imaging of small plants (such as Arabidopsis thaliana), detached leaves, mosses, lichens, plated algal colonies or algal suspensions, etc. The system is very compact and allows easy dark adaptation of an investigated sample.

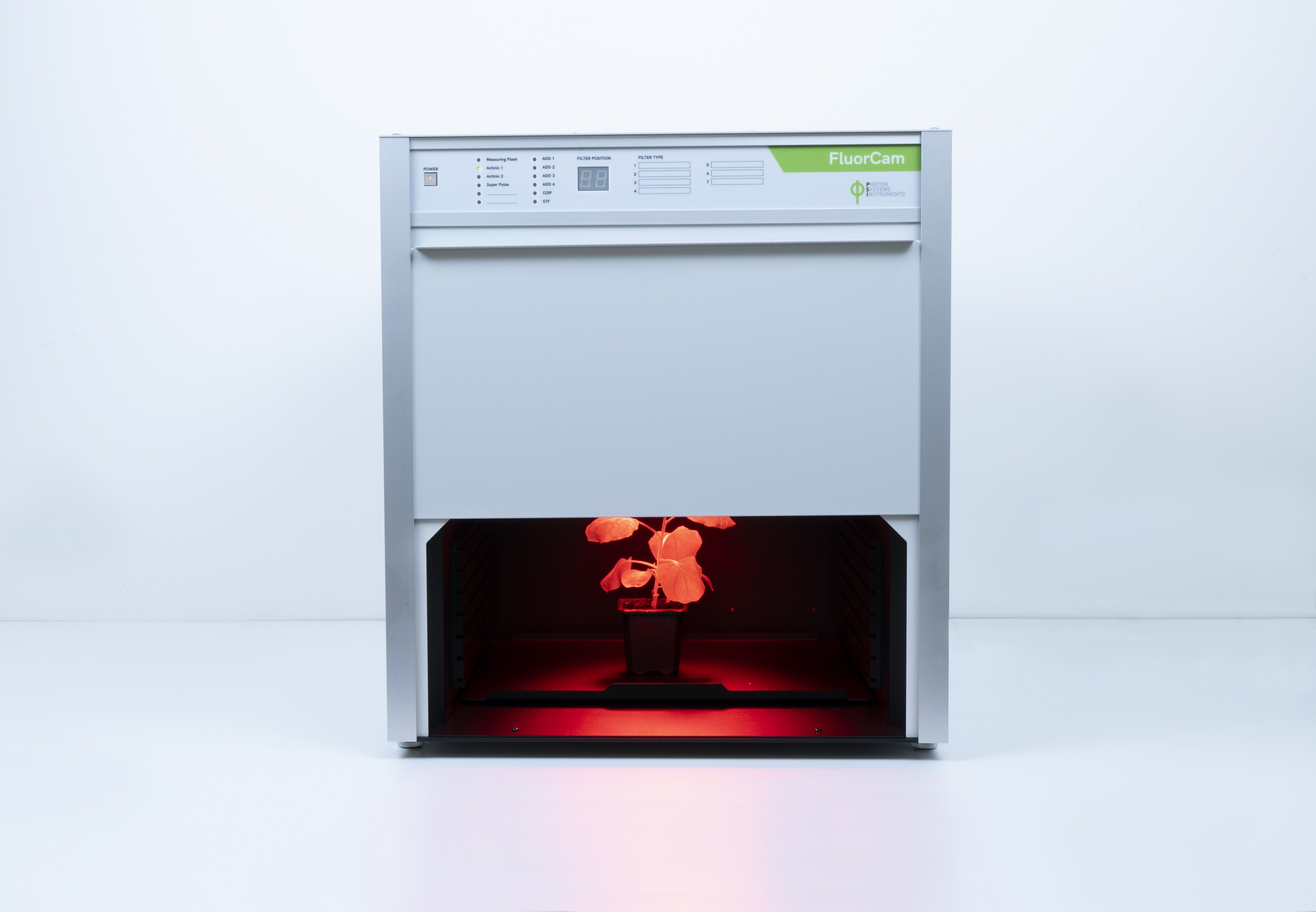

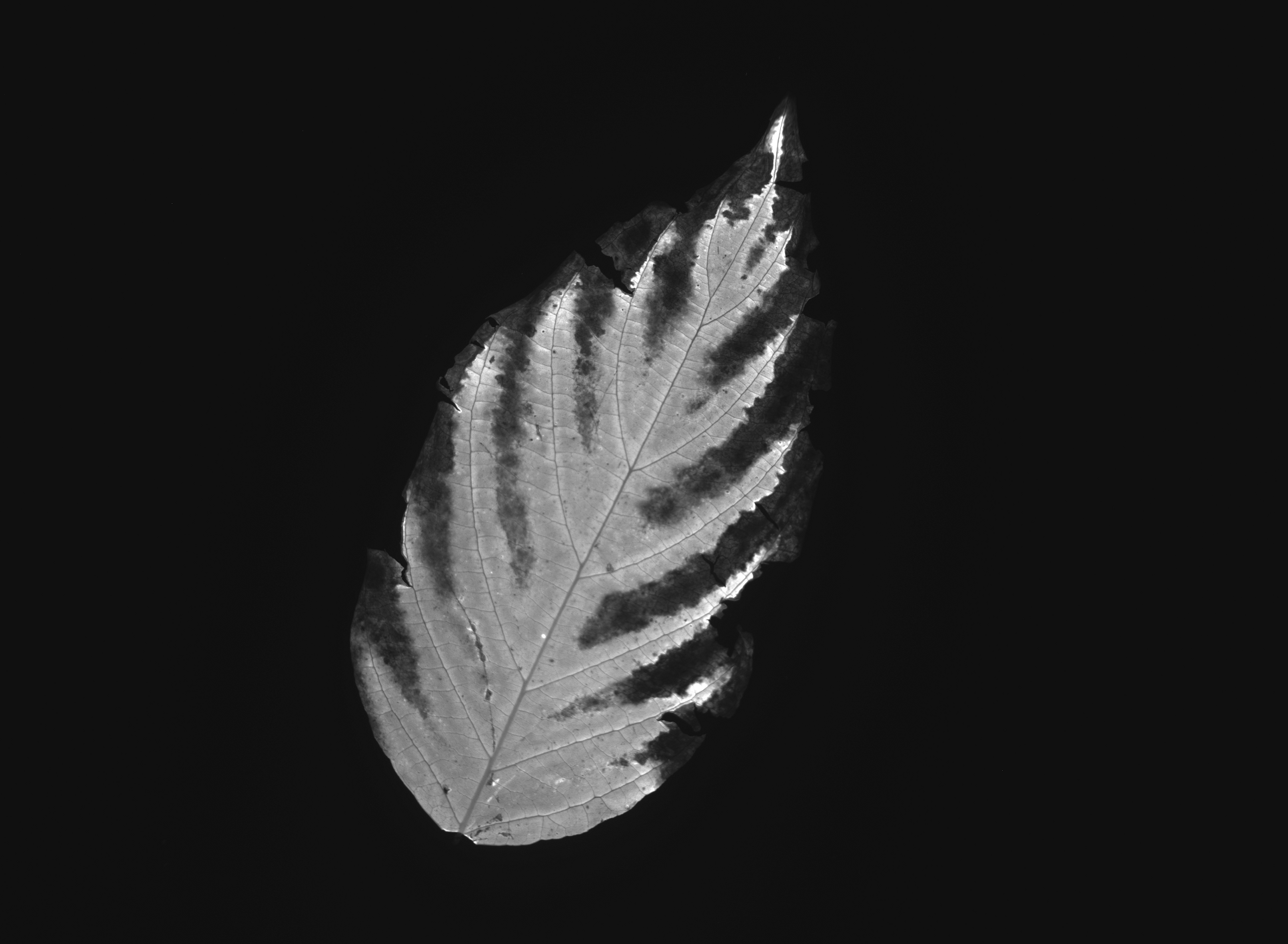

The Closed FluorCam FC 800-C generates images of fluorescence signal at any moment of the experiment and presents them using a false color scale. Full kinetic analysis is available. In all applications, the camera allows imaging of fluorescence transients that are induced by actinic light or by saturating flashes. The timing and amplitude of actinic irradiance are determined by user-defined protocols. The Closed FluorCam FC 800-C also includes a high-performance PC and comprehensive software package comprising full system control, data acquisition and image processing. For an experienced professional, the software offers a sophisticated programming language that can be used for designing novel timing and measuring sequences.

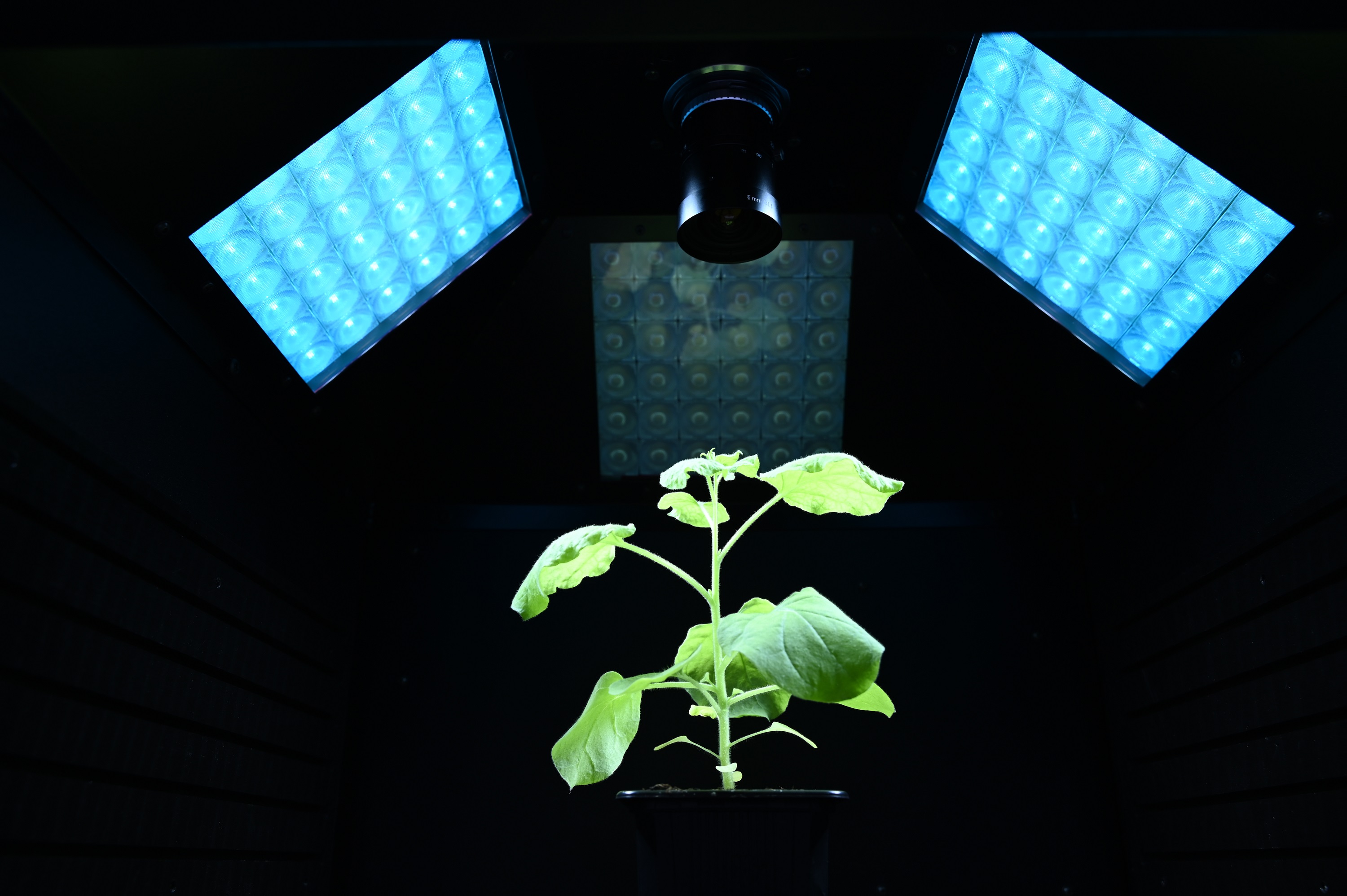

Light Panels

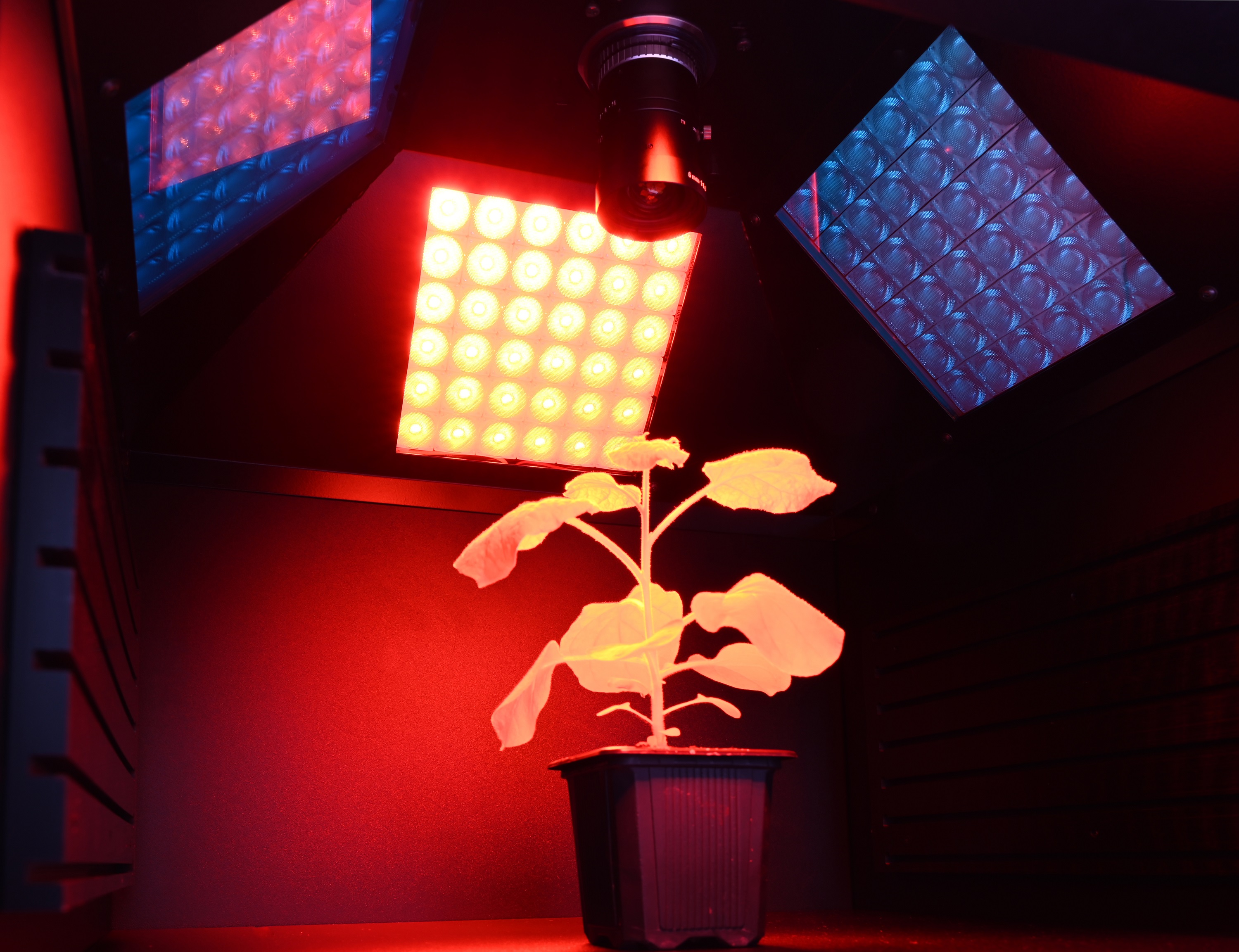

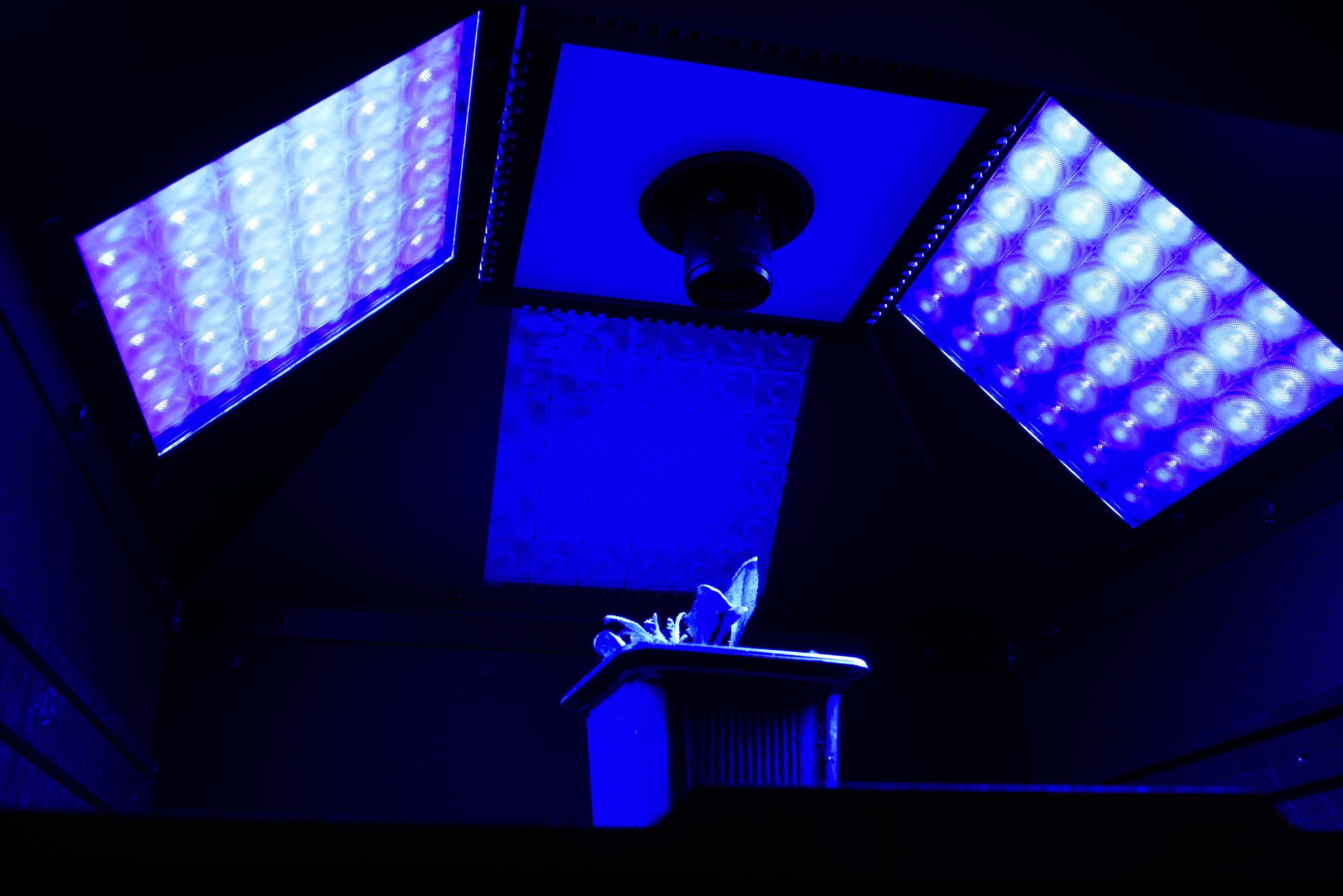

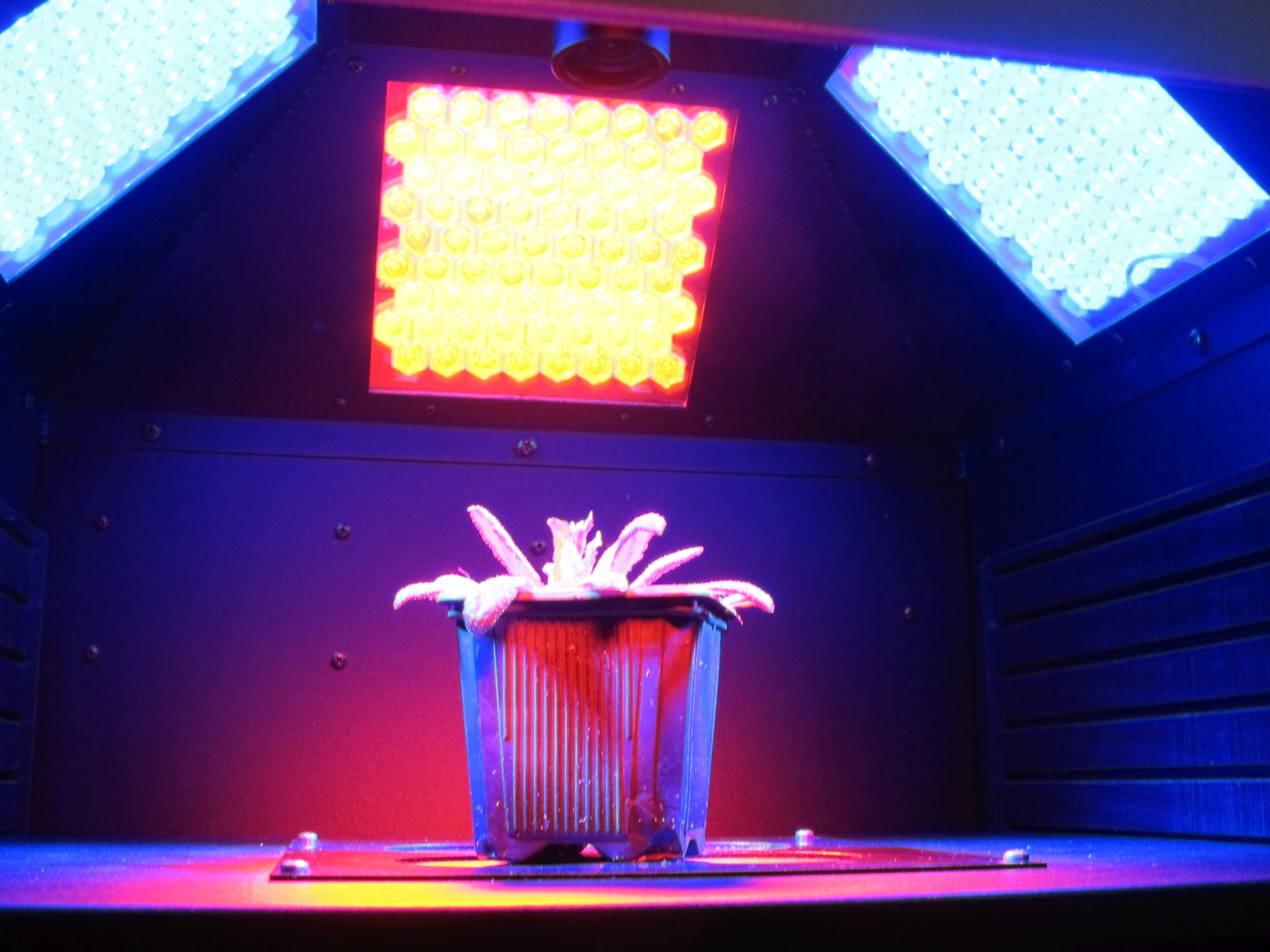

  • Standard version of the FluorCam system includes four super bright LED panels 130 x 130 mm. One pair of LED panels provides Measuring Light and Actinic Light 1 (red-orange 617 nm in standard version). Other two panels provide Actinic Light 2 and Saturating Pulse (cool white 6500 K in standard version).
  • Other available wavelengths for light sources are: royal-blue (447 nm), blue (470 nm), green (530 nm), cyan (505 nm), red (627 nm), deep-red (655 nm), amber (590 nm) - these lights sources are mounted only in customized FluorCam versions.
  • Additional LED panel may be added to increase the colour spectrum of the light sources for multi-colour fluorescence measurements. Additional panel is mounted around the camera. Available colours are: far-red (740 nm), deep-red (660 nm), ultra-violet (365 or 385 nm), green (523 nm), amber (590 nm). Other options available upon request.
  • Actinic light intensity:
  • - 300-2,000 µmol. m-2. s-1 in the standard version depending on light wavelength,
    - up to 3,000 µmol. m-2. s-1 in the light-upgraded version - please inquire at:

  • Super pulse intensity:
  • - up to 4,000 µmol. m-2. s-1 (in the standard version),
    - up to 6,000 µmol. m-2. s-1 (in the light-upgraded version)

  • Single Turnover Flash (STF): 120,000 µmol. m-2. s-1 in 100 µs pulse (in the QA re-oxidation version)



Protocols


  • FV/FM
  • Kautsky induction
  • Quenching analysis
  • Light Curve
  • Multicolor fluorescence, e.g., UV induced plant blue-green fluorescence (F440, F520) and chlorophyll fluorescence (F680, F740); filter wheel required
  • QA-reoxidation (it needs optional electronic module)

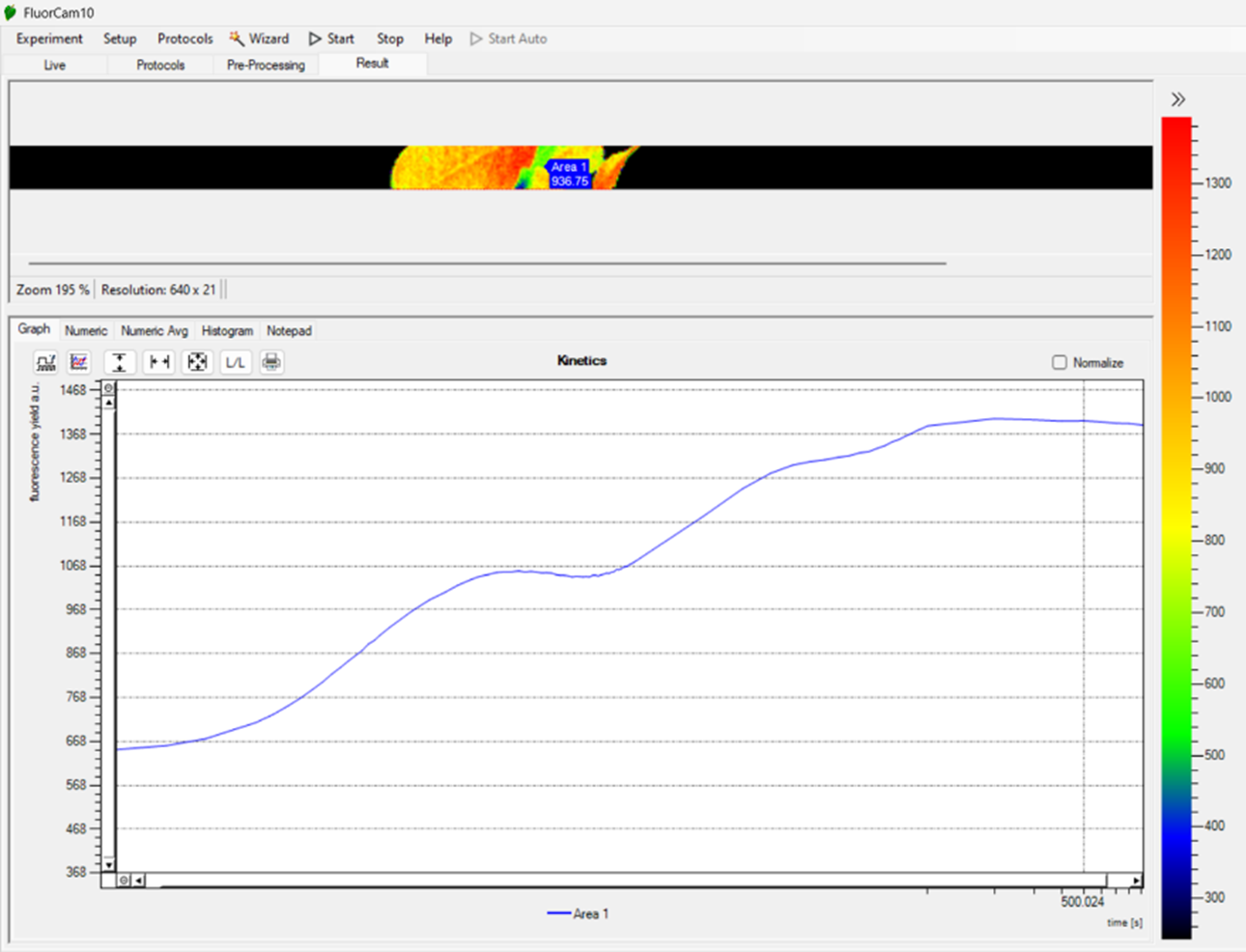

  • Fast fluorescence induction (OJIP) with 1 µs resolution (it needs optional electronic module)
  • PAR absorptivity (it needs optional accessories: filter wheel and additional far-red LED panel)



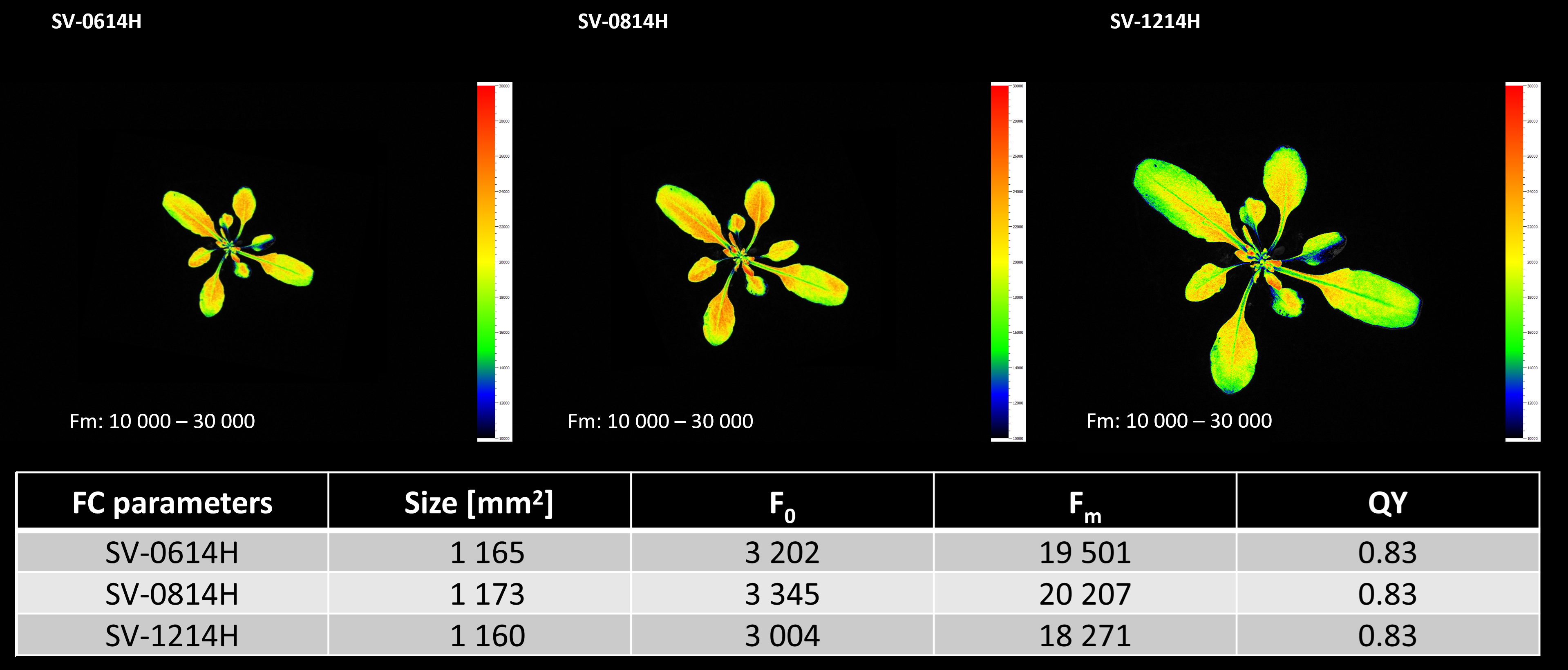

Measured Parameters

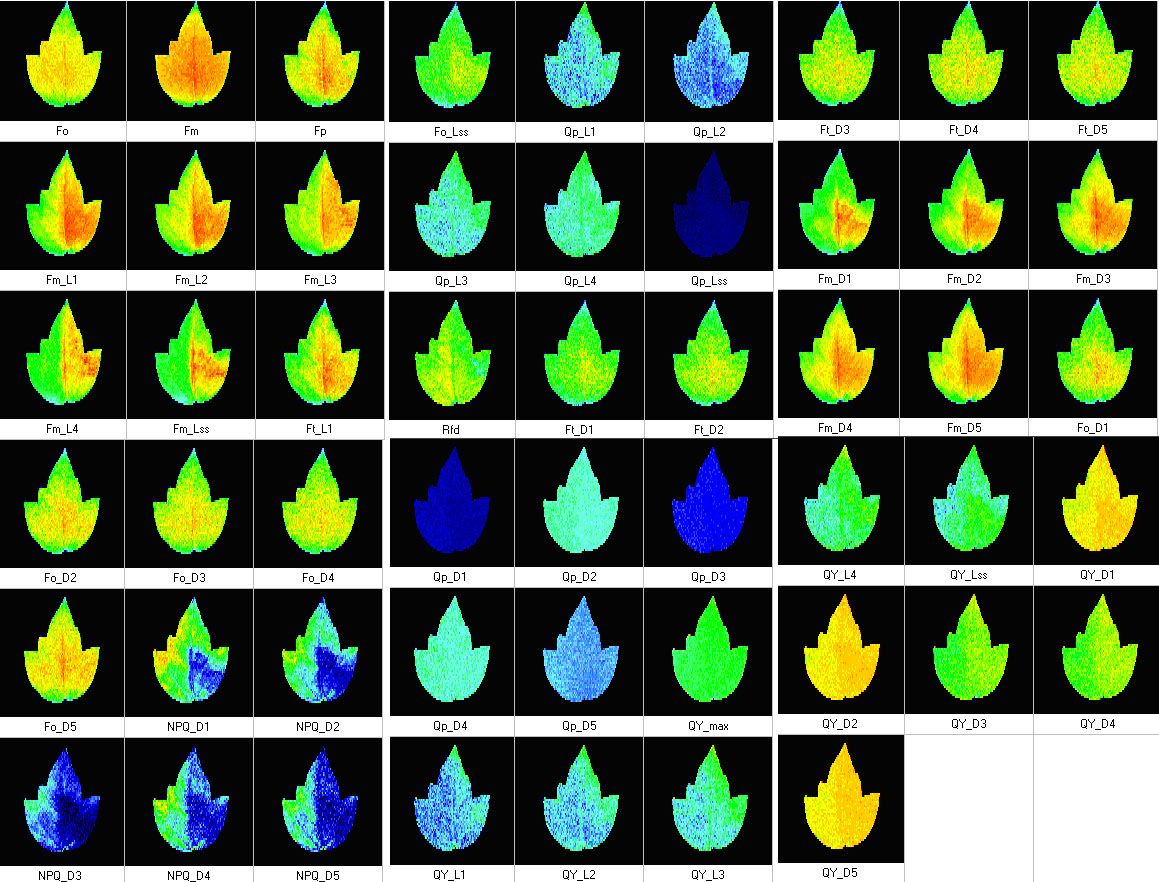

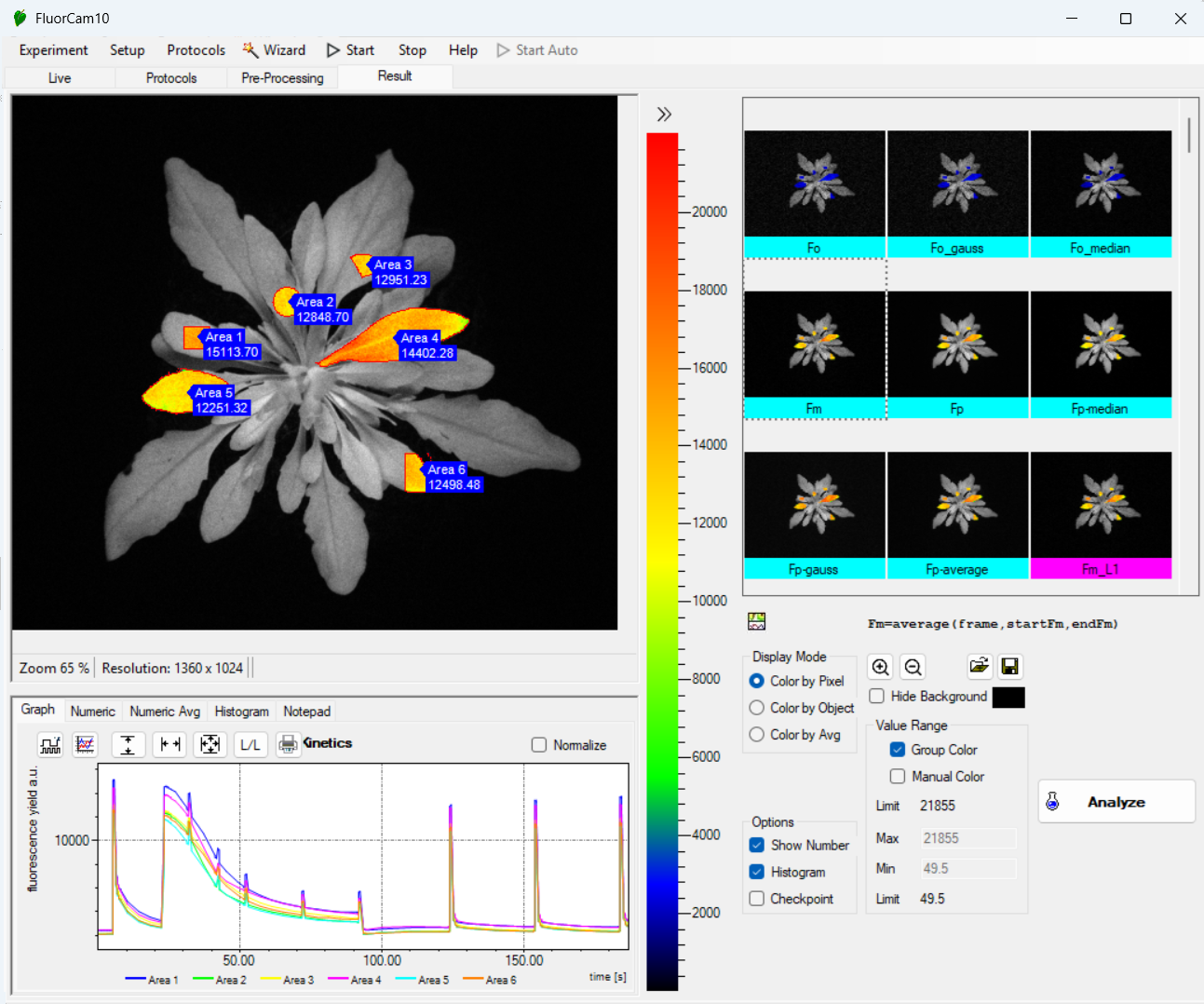

  • Measured parameters: FO, FM, FV, FO', FM', FV', FT
  • More than 50 calculated parameters: FV/FM, FV'/FM', PhiPSII, NPQ, qN, qP, Rfd, ETR (via Light Curve protocol), PAR-absorptivity coefficient, and many others





Applications


  • Screening for photosynthetic performance and metabolic perturbations
  • Detection of biotic and abiotic stress
  • Plant’s resistance or susceptibility to various stress factors
  • Plant molecular biology, screening for mutants
  • Plant-microbe interactions
  • Agriculture and horticulture
  • Growth and development



Samples


  • Leaves, small plants, fruits, vegetables
  • Mosses, lichens
  • Cyanobacteria, green algae
  • Nematodes
  • Selectable shelf system for different plant size
  • Predefined imaging masks for 384-well plate, 96-well plate, Petri dish, etc.
  • Dark room for adaptation





Software


  • Fully automated control of the whole FluorCam system
  • Image acquisition via automated experimental protocols:
  • - numerous predefined protocols
    - possibility to create user defined protocols via a program Wizard
    - multiple (automatically repeated) experiments
    - barcode reader support

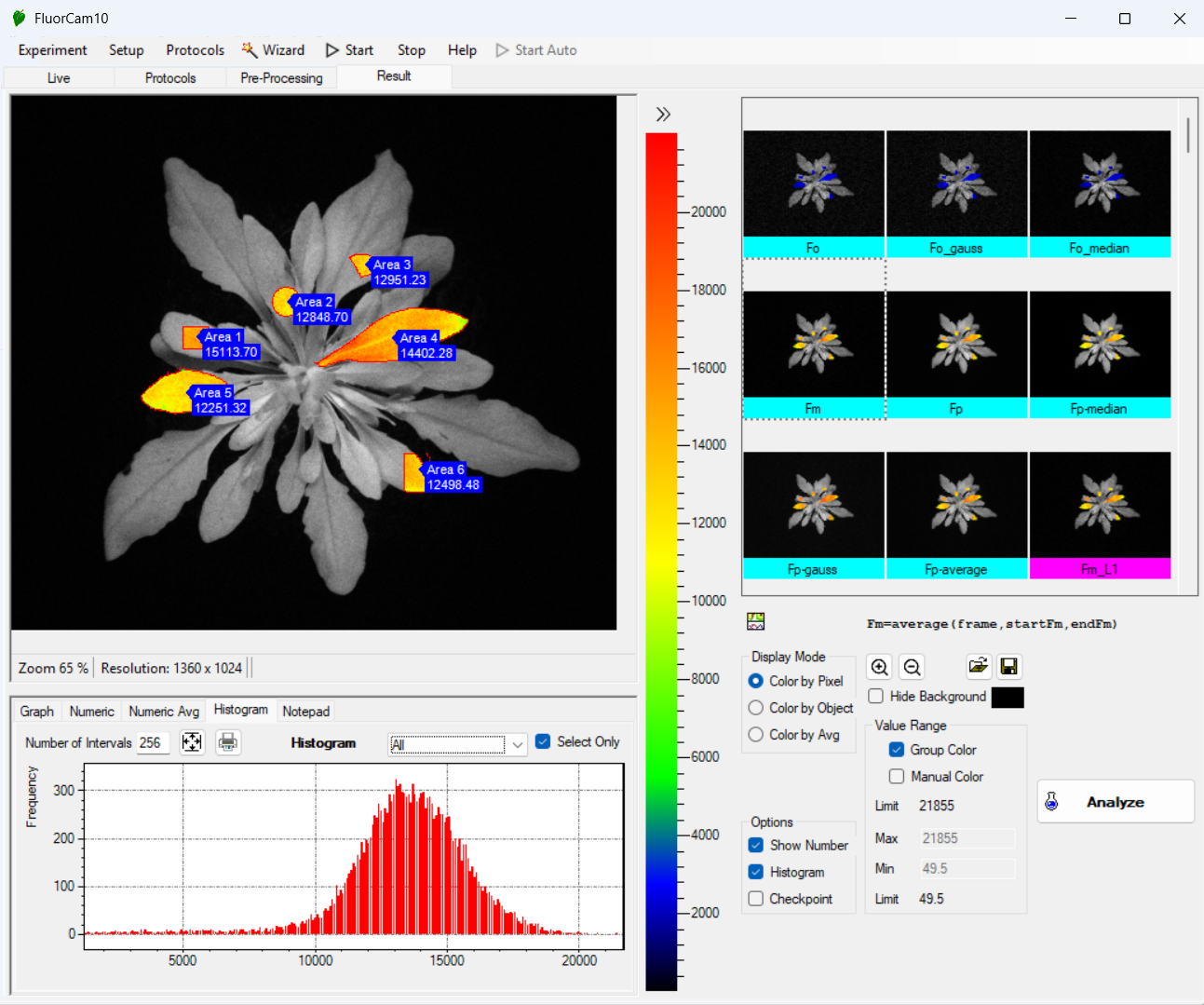

  • Image processing tools:

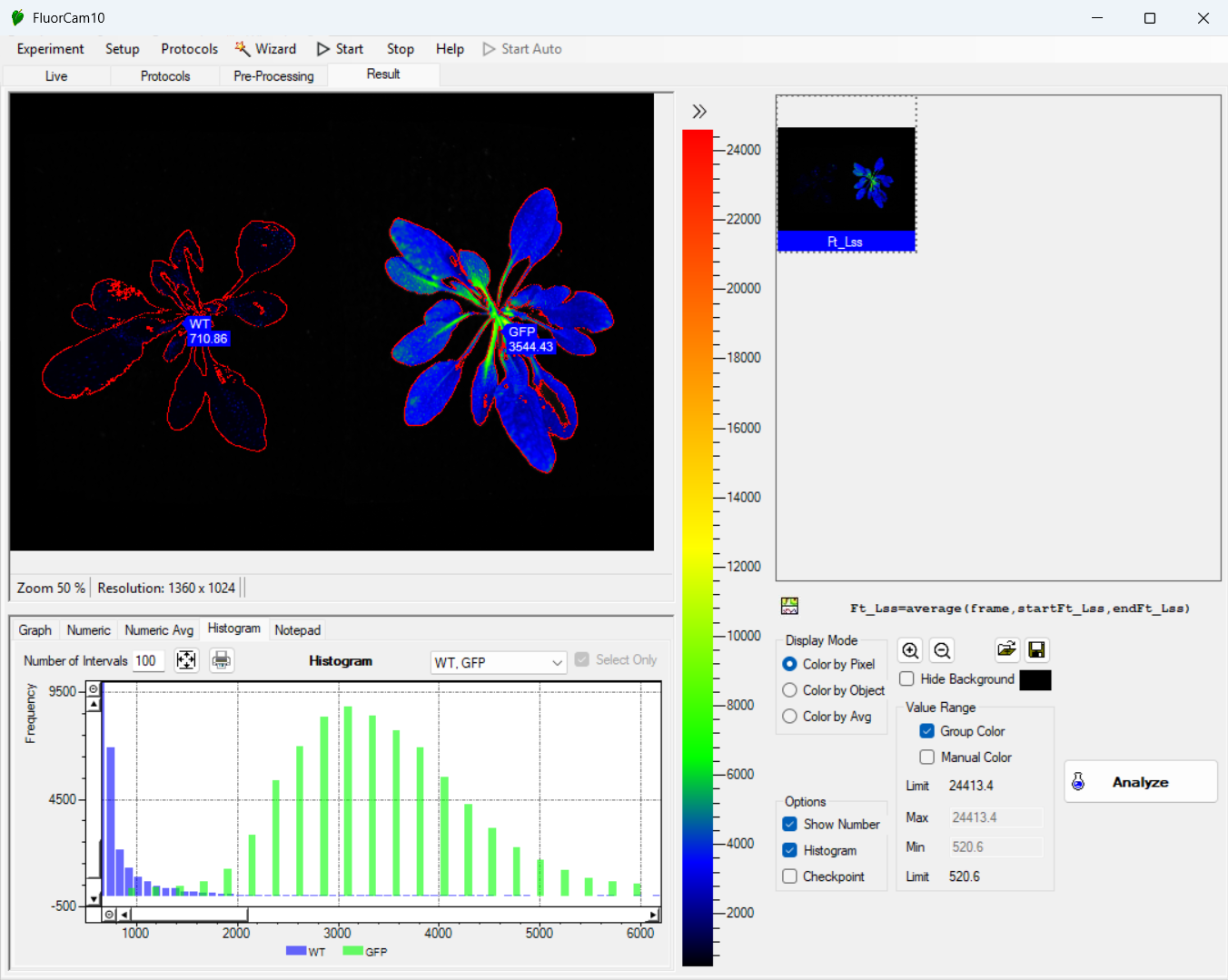

  • - automatic or manual image segmentation – e.g., labeling of individual plants
    - analysis of kinetic data from all samples within the field of view
    - numerous image manipulation tools
    - export to text file, avi, bmp or raw data formats

  • Windows 7, or higher compatible



For more information about LED wavelengths options and CCD cameras go to Products Introduction


Versions


Closed FluorCam FC 800-C/1010-S

Includes FluorCam control unit, measuring box with adjustable shelf, high-resolution camera, four LED light panels (130 x 130 mm; two red-orange panels, two white panels), filter for Chl fluorescence, control PC, software package, user’s guide.

Closed FluorCam FC 800-C/1010-CUST

Includes FluorCam control unit, measuring box with adjustable shelf, high-resolution camera, four LED light panels (130 x 130 mm; selectable wavelengths), filter for Chl fluorescence (optionally other filters and/or filter wheel), control PC, software package, user’s guide.

Specifications


Fluorescence Parameters:
- Measured parameters: FO, FM, FV, FO', FM', FV', FT
- More than 50 calculated parameters: FV/FM, FV'/FM', PhiPSII, NPQ, qN, qP, Rfd, PAR-absorptivity coefficient, and many others

Light Sources:
455 nm, 470 nm, 505 nm, 570 nm, 605 nm, 618 nm, 630 nm, 735 nm, white and others

Super Pulse Intensity:
- 4,000 µmol. m-2. s-1 (in standard version)
- 6,000 µmol. m-2. s-1 (in light-upgraded version)

Actinic Light Intensity:
Up to 2,000 µmol. m-2. s-1 (in standard version)
Up to 3,000 µmol. m-2. s-1 (in light-upgraded version)

Filter Wheel:
7 positions

Light Regime:
Static or harmonically modulated (sine waveform)

Custom-Defined Protocols:
Variable timing, special language and scripts

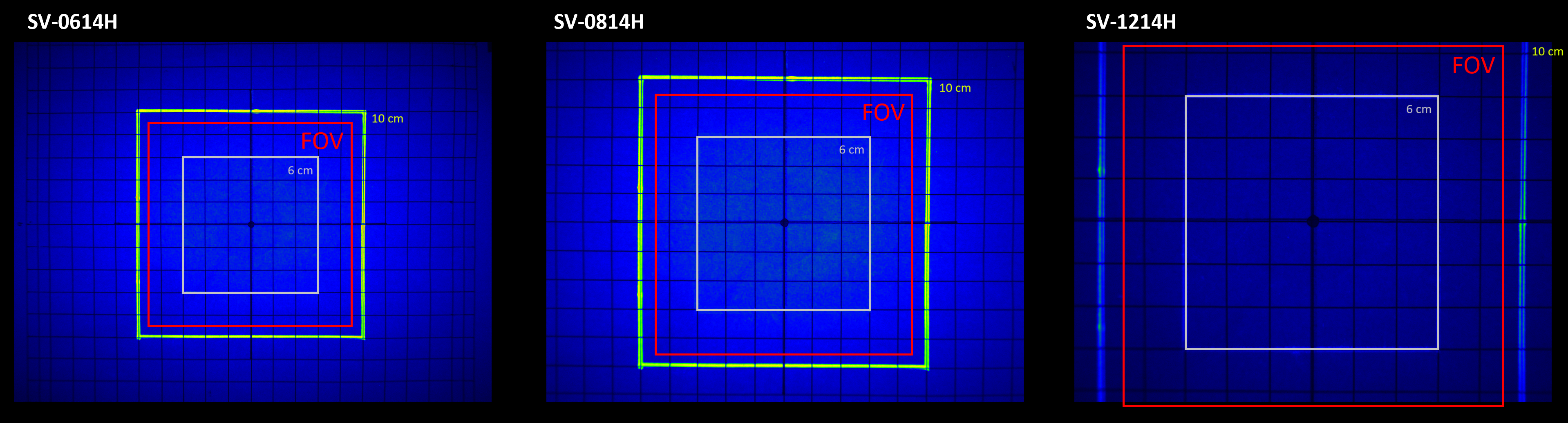

CCD Detector Wavelength Range:
400 – 1000 nm

CCD Format:
- 1360 x 1024 pixels (TOMI-2 camera)
- 1280 x 1024 pixels (TOMI-3 camera)

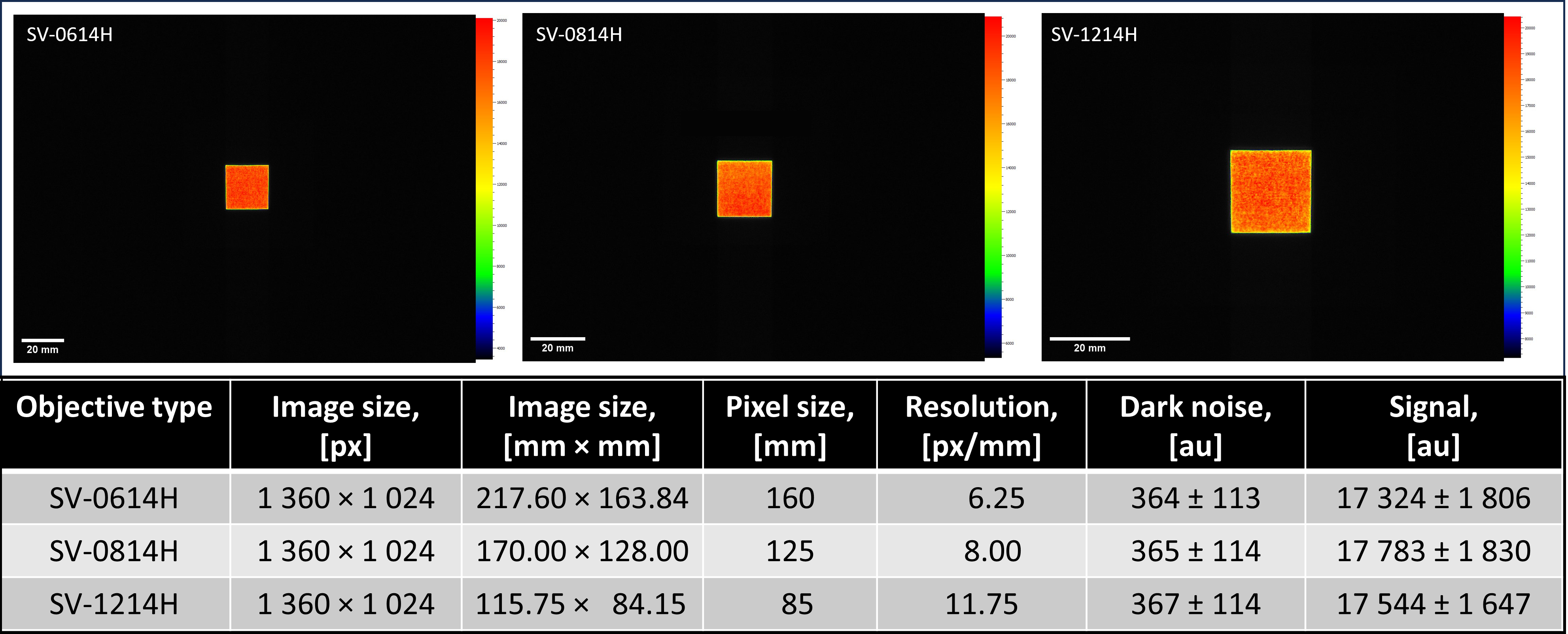

Pixel Size:
- 6.45 µm x 6.45 µm (TOMI-2)
- 6.60 µm x 6.60 µm (TOMI-3)

A/D bit Resolution:
- 16 bit (TOMI-2)
- 12 bit (TOMI-3)

Interface Connector:
Gigabit Ethernet

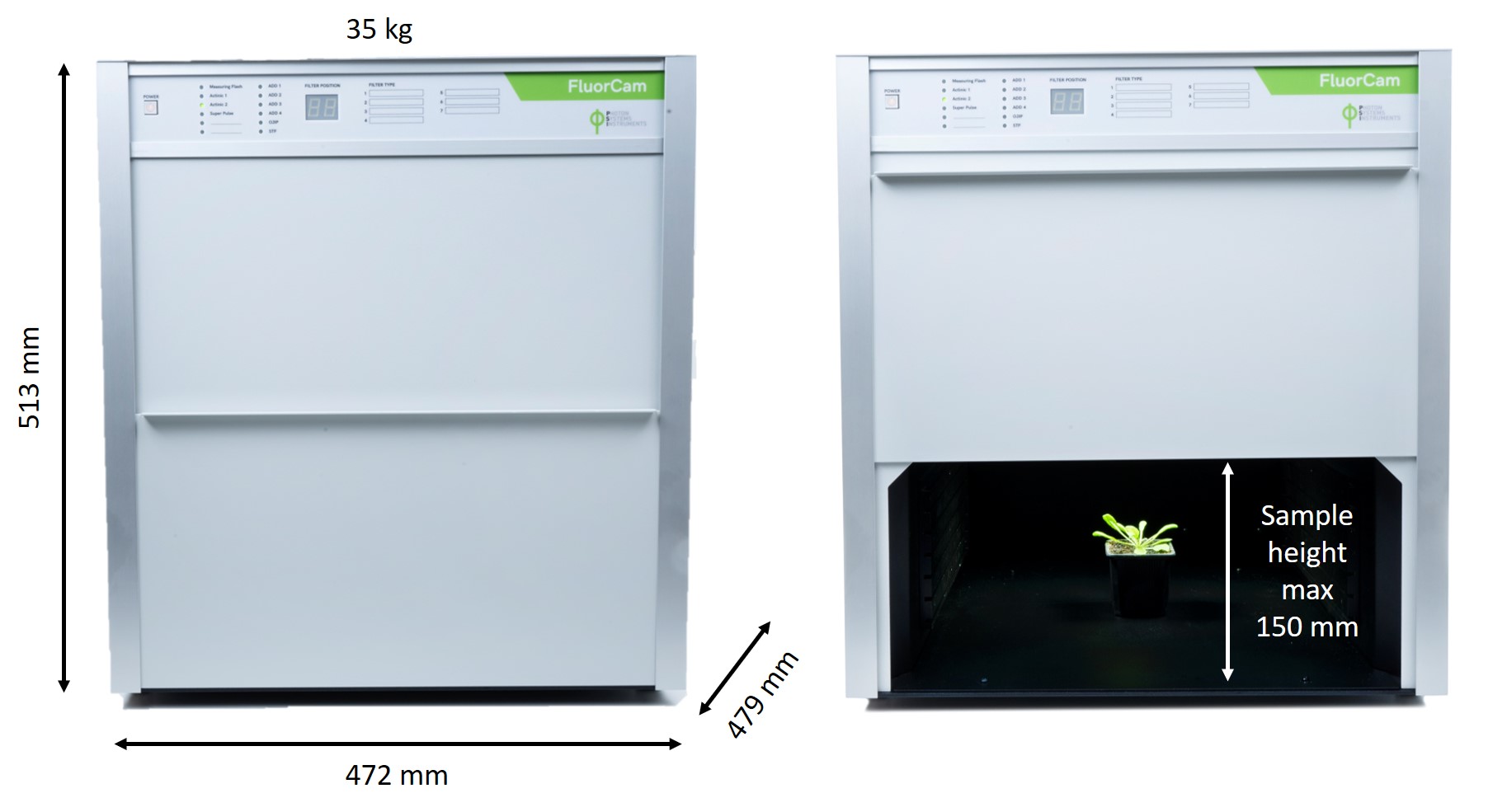

Outer Dimension:
472 mm (W) x 479 mm (D) x 513 mm (H)

Weight:
Appr. 40 kg

Power Input:
Appr. 1100 W

Electrical:
90 – 240 V

Cameras:
High-resolution TOMI-2 or highspeed TOMI-3

For more information about LED wavelengths options and CCD cameras go to Products Introduction


[h1]Documents[/h1] [list] [*][b] FluorCam Operation Manual (pdf)[/b] [*][b] FluorCam Quick Start Guide (pdf)[/b] [*][b] NDVI Operation Manual(pdf)[/b] [*][b] Driver Instalation manual (pdf)[/b] [/list] [h1]Software[/h1] [list] [*][b] FluorCam 7 (installer), OS: Win 7/10[/b] [*][b] Legacy driver for USB cameras, OS: Win 7 (32 bit)[/b] [/list] [h1]Promotional Materials[/h1] [list] [*][b] FluorCams leaflet (pdf)[/b] [/list] [h1]Tutorial video[/h1] [list] [*][b] FluorCam Tutorial video (mp4)[/b] [/list]

Optional


QA-Reoxidation Module
High-end option allowing determination of QA-reoxidation kinetics. QA-reoxidation is recorded in a pump-and-probe manner, i.e. using repetitive flashes and recording with variable delay after each flash.

PAR-Absorptivity and NDVI Module
High-end option for measuring PAR absorptivity based on NDVI reflectance index. PAR absorptivity coefficient is calculated according to the equation a = 1- (red signal / near infra-red signal).
It includes 7-position filter wheel, light panel 130 x 130 mm (installed round the camera and mounted with far-red LEDs 735 nm + red LEDs 650 nm) and a glass filter. PAR-measurement is based on reflectance of plants in near infrared region and in the visible red range of spectrum. NDVI is used as vegetative index for predicting photosynthetic activity.
IMPORTANT NOTES: To be used only with FC 800-C/1010, FC 800-C/1010-GPF or FC 800-O/1010. This module cannot be used with the Multicolor Plant Module in FC 800-C/1010 or FC 800-C/1010-GPF.

Multicolor Plant Module
High-end option for measuring emission spectra in plants (according to Lichtenthaler and Bushmann). It includes 7-position filter wheel, UV LED light panel (installed round the camera and mounted with 4 UV LEDs 380 nm), four filters - BLUE (FF01-440/40), GREEN (FF02-520/28), RED (FF01-690/8), FAR-RED (FF01-747/33) - and a special software module.
IMPORTANT NOTES: To be used only in the FC 800-C/1010, FC 800-C/1010-GPF or FC 800-O/1010. This module cannot be used with the PAR-Absorptivity and NDVI Module in the FC 800-C/1010 or FC 800-C/1010-GPF.

Fast Fluorescence Induction (OJIP) Module
Electronic module for tracking fast fluorescence induction – OJIP curve. Includes a special electronic board and measuring protocol. The processes are recorded in multiple light exposures, each with a variable delay after the light is switched on.

Filter Wheel
7-position software-controlled filter wheel allows for imaging in different emission bands. Filters are easily interchangeable.

Additional LED Light Panels
Additional LED light panel is mounted at the top part of the FluorCam System. It is located under the camera; the objective of the camera is inserted in the central opening of this panel. The panel widens the possibility of employing more excitation colors for special applications. It is equipped with 4 high-power LEDs in one-channel version, or 8 high-power LEDs in two-channel version. Available colours are: far-red (740 nm), deep-red (660 nm), ultra-violet (365 or 385 nm), green (523 nm), amber (590 nm). Other options available upon request.
Ultraviolet Panel (365 or 385 nm): Recommended use: (1) multicolor fluorescence - UV excited blue F440, green F520, red F680, and infra-red F740 (must be accompanied with the filter wheel and high-resolution CCD); (2) excitation source for wtGFP, DAPI (filter wheel and high-resolution CCD required). Optical power 1,5 W.
Blue Panel (470 nm): Recommended use: (1) excitation source for EGFP (must be accompanied with the filter wheel and high-resolution CCD); (2) studies on stomata function.
Green Panel (530 nm): Recommended use: excitation source for YFP (must be accompanied with the filter wheel and high-resolution CCD).
Far-Red Panel (740 nm) : Maximum total output: 1,200 mW (4 x 300 mW). Recommended use: determination of Fo' and PAR absorbance (use of filter wheel required).
PAR - NDVI Panel (660 nm + 740 nm): This panel is part of the PAR-Absorptivity and NDVI Module.

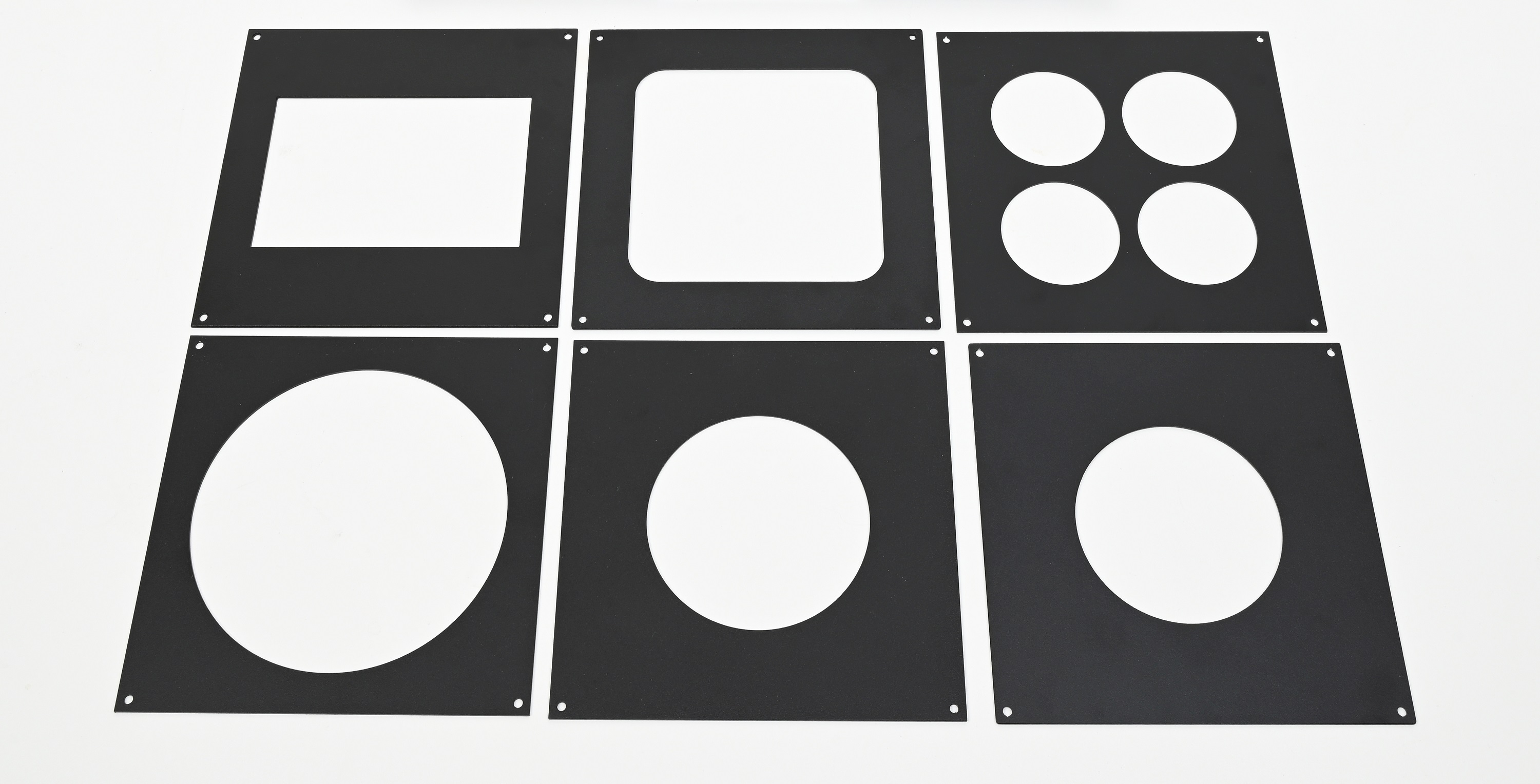

Set of Grids for Sample Holders
Grids serve for firm and secure attachment of sample holders - Petri dishes or multi-well plates - to the desired spot on the FluorCam shelf or bottom. They are sold as a set of six different holders: for 90 mm, 100 mm, 120 mm, or 140 mm Petri dishes; 4 x 60 mm Petri dish; and for 96-well plate.

Additional Protective Glasses
Radiation safety glasses protecting against excessive LED radiation – equipped with side cover and protective filters. One pair of glasses is provided with the device free of charge.

Advanced Multiple Function for FluorCam Software
Software upgrade enabling multiple scripting functions for automatic initiation and measurement of scheduled FluorCam protocols and for automatic data storage. Advanced multiple function feature allows to define time of protocol initiation with user-defined protocol, apply user defined mask for feature segmentation, automatically subtract the background based on the mask definition and analyze the measured data. The are stored as TAR files with time and date description. Useful for circadian cycle study.

Comprehensive Module for Automatic and Programmable Image Acquisition and Data Management *
Comprehensive software and hardware package for data acquisition and image parameters extraction and analysis. Software part offers user friendly graphical interface, where complex protocols can be easily designed including dark/light adaptation schemes and executed based on user defined actions. All acquired data are stored in an SQL database, processed and available for inspection and further analysis in range of seconds after recording. System allows rapid and easy data browsing, grouping, analysis, user-defined data reprocessing and export. Hardware part includes PC with RAID5 data array, router, monitor, keyboard and mouse.

Barcode Reader with Supporting Software
Barcode reader with FluorCam supporting software included. Used for fully automatic bar code search.

Pricing


FluorCam
Version Characteristics Price
Closed FluorCam FC 800-C/1010-S Includes high-resolution camera, 4 LED panels 130 x 130 mm (two red-orange, two white), filter for Chl fluorescence, control unit, control PC, software package, user’s guide. 19,290 €
Closed FluorCam FC 800-C/1010-CUST Includes high-resolution camera, 4 LED panels 130 x 130 mm (selectable wavelengths), filter for Chl fluorescence, control unit, control PC, software package, user’s guide. Please inquire

Optional Accessories

Additional Far-Red
Light Panel
Recommended use for determination of Fo'. 2,149 €
Additional Ultraviolet
Light Panel
Recommended use: multicolor fluorescence. Should be accompanied with the filter wheel and high-resolution camera. 3,229 €
Additional Single Color
Light Panel
Recommended use: excitation source for EGFP, YFP, etc. Should be accompanied with the filter wheel and high-resolution camera. 2,690 €
Additional Bi-Color
Light Panel
Should be accompanied with the filter wheel and high-resolution camera. 2,999 €

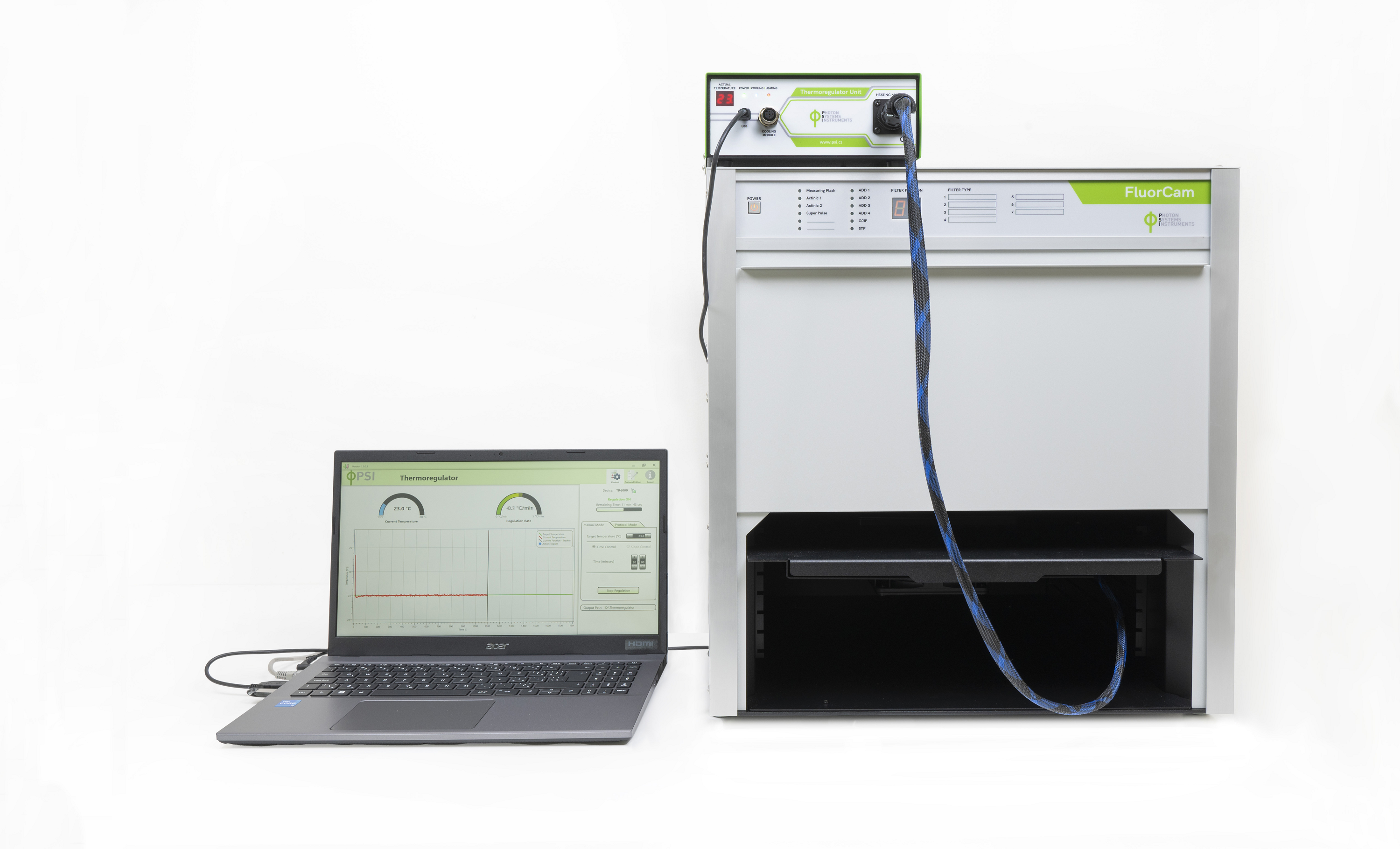

7-Position Filter Wheel Motorized filter wheel allows for imaging in different emission bands (software controlled). 3,770 €

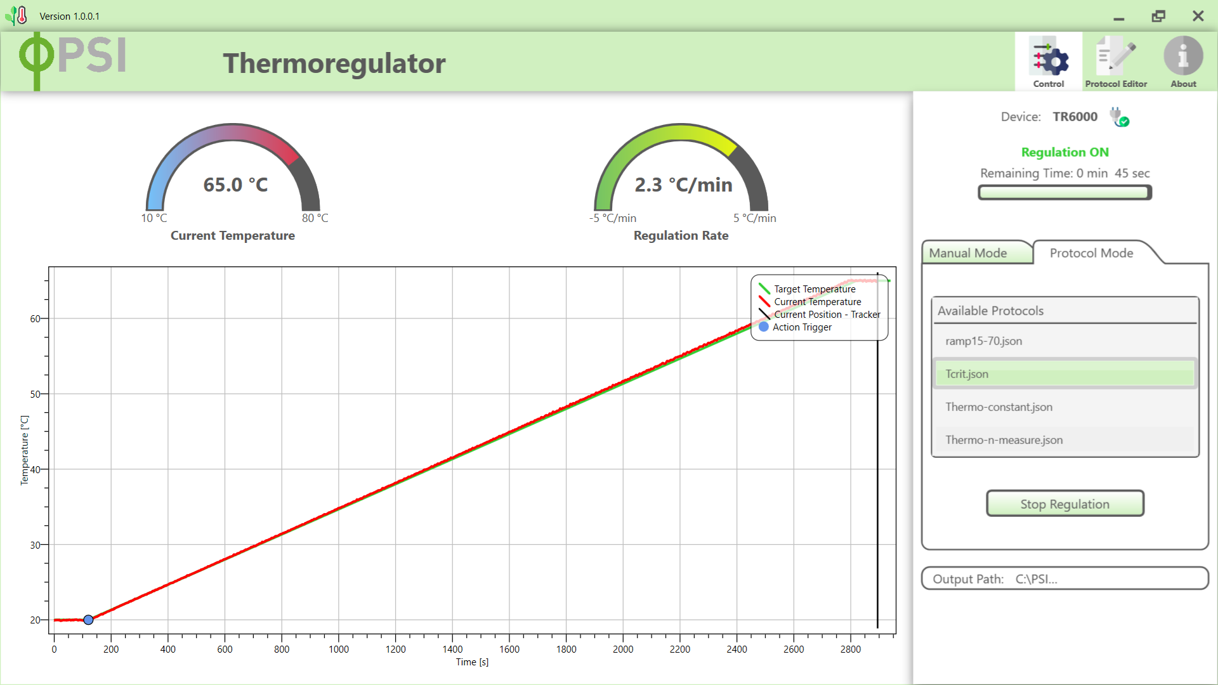

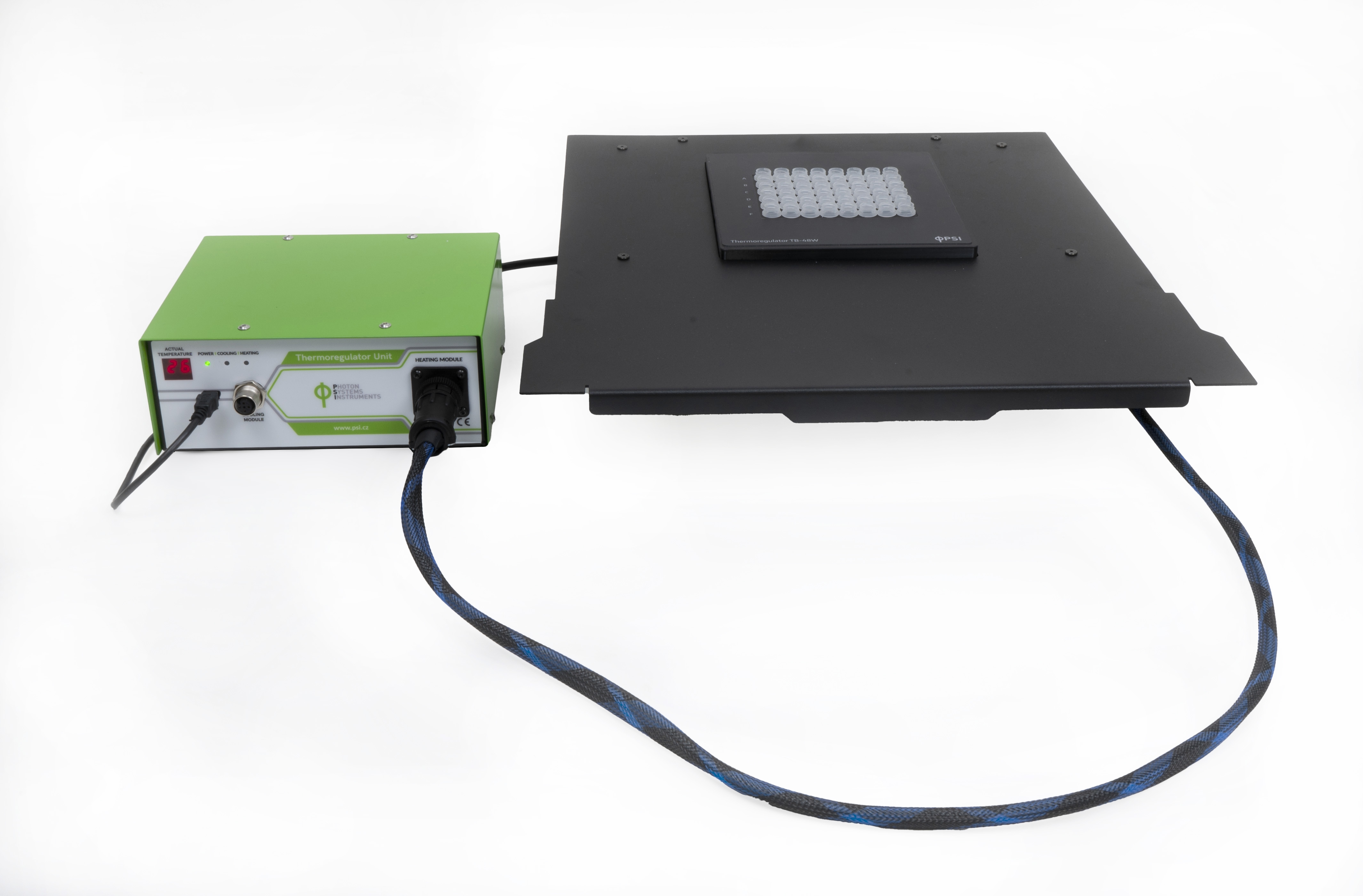

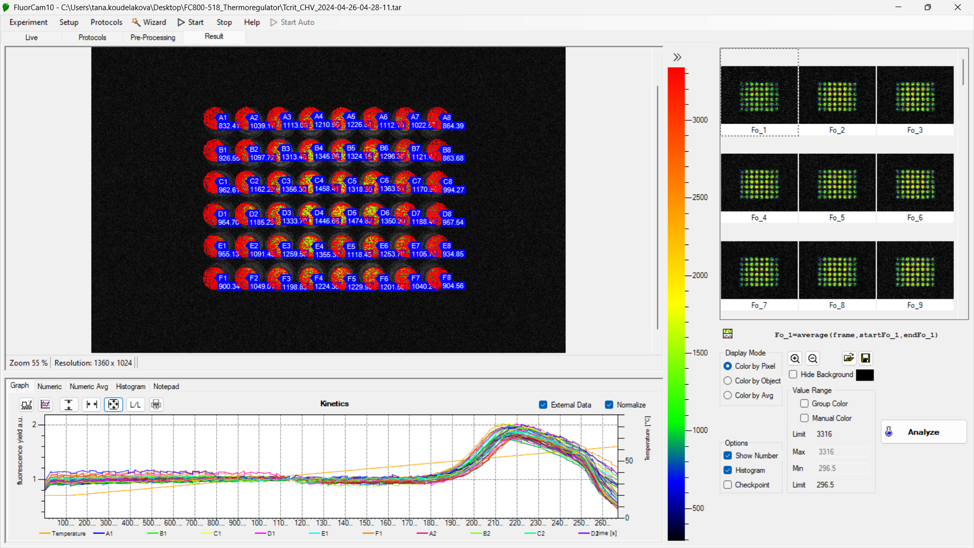

Thermoregulator TR6000 Temperature module ensures precise and stable thermal control of live biological specimen. The module allows for either constant-temperature incubation or dynamic heating and cooling, following pre-set temperature profiles like rapid or linear heating with a uniform rate. The TR6000 comprises a Control Unit, a 48-well Thermal Block and Thermoregulator GUI control software which enables the synchronization of FluorCam experiments with TR6000. The TR GUI communication is exclusively supported in Fluorcam 10 software. 11,880 €
QA-Reoxidation Module Allows performing of rapid measurements of QA-reoxidation kinetics (in Closed FluorCam only). 11,880 €
PAR Absorptivity
and NDVI Module
High-end option for measuring PAR absorptivity based on NDVI reflectance index. PAR absorptivity coefficient is calculated according to the equation
a = (near infrared reflectance - red reflectance)/(near infrared reflectance + red reflectance)

It includes 7-position filter wheel, light panel 130 x 130 mm (installed round the camera and mounted with far-red LEDs 735 nm + red LEDs 650 nm) and a glass filter. To be used only with FC 800-C/1010, FC 800-C/1010-GFP or FC 800-O/1010.

5,920 €
Multicolor Plant Module * High-end option for measuring emission spectra in plants (according to Lichtenthaler and Bushmann). It includes 7-position filter wheel, UV LED light panel (installed round the camera and mounted with 4 UV LEDs 380 nm), four filters, and a special software module. 9,690 €
Fast Fluorescence Induction
(OJIP) Module
Electronic module for tracking fast fluorescence induction – OJIP curve. Includes a special electronic board and measuring protocol. 7,455 €
FluorCam 10 software (without a Laptop) The latest generation of 64-bit control software for FluorCam devices with an array of enhanced tools aimed at data analysis, visualization, mass export of data. Additionally, it offers three optional extensions specifically designed to support various setups for benchtop-based automated measurements. The software is delivered on a USB flash drive. (Requirements: PC with Win10 or higher, a decent x64-based processor, 16 GB RAM, storage 1 TB, a Gigabit Ethernet network card.) 2,700 €
FluorCam 10 Software with a Pre-installed Laptop The latest generation of 64-bit control software for FluorCam devices with an array of enhanced tools aimed at data analysis, visualization, mass export of data. Additionally, it offers three optional extensions specifically designed to support various setups for benchtop-based automated measurements. The software is delivered on a pre-installed laptop (64-bit operating system, x64-based processor, 16 GB of RAM, 256 GB SSD + 1 TB HDD storage, a Gigabit Ethernet network card essential for the connection with the FluorCam device). 3,900 €
Advanced Multiple Function for FluorCam 10 Software Software upgrade enabling automated triggering of one measuring protocol. A straightforward wizard, utilizing pop-up windows, enables the input of the number of repetitions, the delay between measurements, and the adaptive lighting conditions before the measurement. The recorded data are saved with date & time stamp. The functionality is ideal for examining kinetic processes such as tracking pharmacological effects over time or exploration of circadian patterns. 490 €
Advanced Circadian Function for FluorCam 10 Software The automatic function was specially designed for the study of circadian rhythms. It enables the repeated execution of two distinct measuring protocols: a day-time specific measurement and undisturbing monitoring of nocturnal changes. A straightforward wizard, utilizing pop-up windows, enables the input of the number of repetitions for up to two protocols, the delay between day and night measurements, and the adaptive lighting conditions for each phase of the day. The recorded data are saved with date & time stamp. 990 €
Advanced Multi-phase Function for FluorCam 10 Software The automated extension feature enables the merging of n-phases, each with its unique protocol. This function unlocks the range of potential applications for semi-automated measurements. A simple wizard, utilizing pop-up windows, enables the input of the number of repetitions, the delay between measurements, and the adaptive lighting conditions before the measurement separately for each phase. The recorded data are saved with date & time stamp. 1,690 €
Comprehensive Module
for Automatic and Programmable
Image Acquisition
and Data Management *
Comprehensive software package empowers users with the ability to schedule experiments with extremely high degree of flexibility. It also enables automated data acquisition and automated analysis of data series stored in SQL database. Scheduling assistant with calendar function allows running multiple experiments simultaneously and sample lighting regime including dark/light adaptation. PlantScreenTM Data Analyser provides tools for data browsing, grouping, analysis, user-defined re-processing and export. 6,490 €
Set of Grids
for Sample Holders
Grids serve for firm and secure attachment of sample holders - Petri dishes or multi-well plates - to the desired spot on the FluorCam shelf or bottom. They are sold as a set of six different holders: for 90 mm, 100 mm, 120 mm, or 140 mm Petri dishes; 4 x 60 mm Petri dish; and for 96-well plate. 99 €

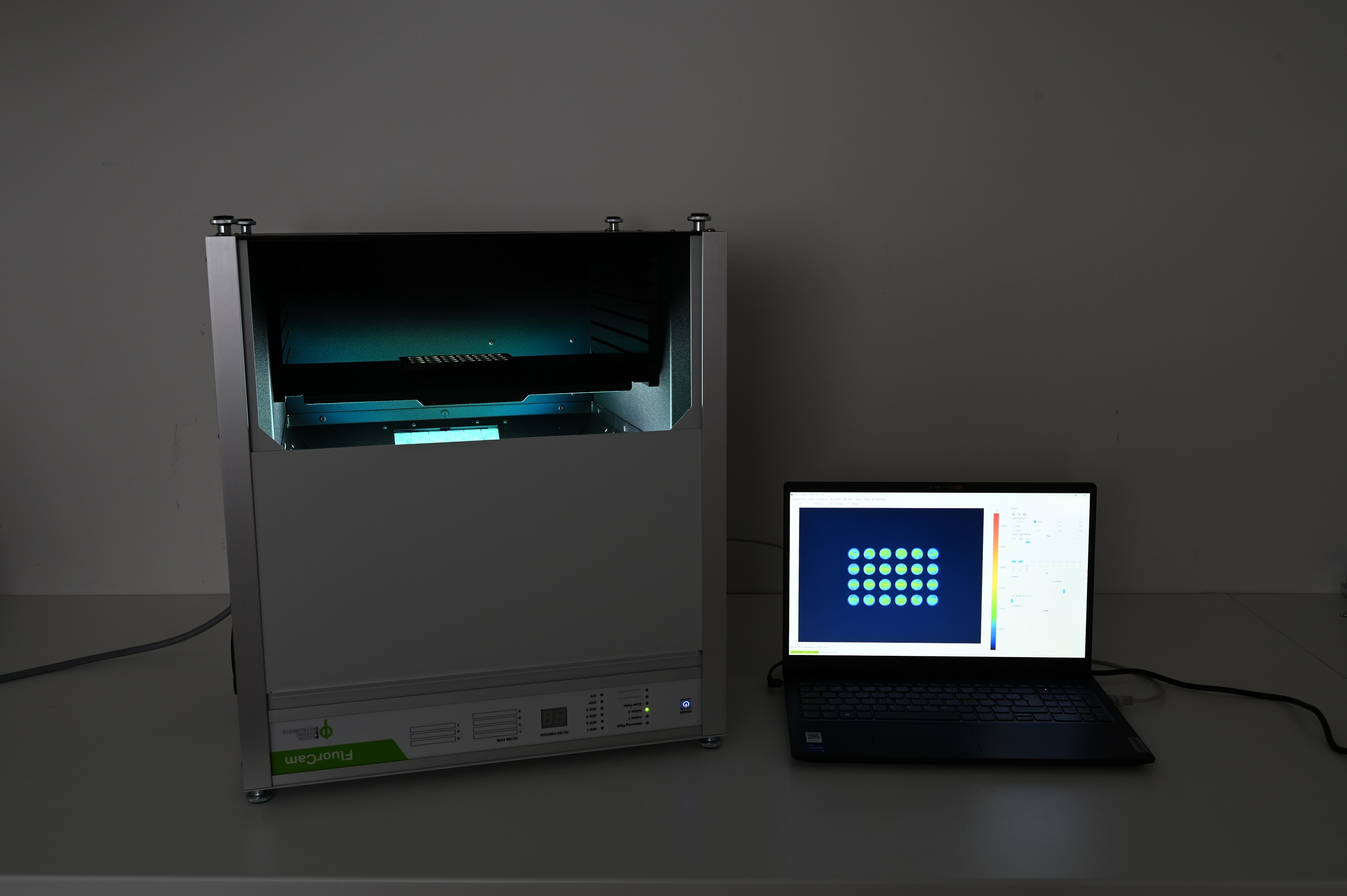

Extension for
multi-well imaging

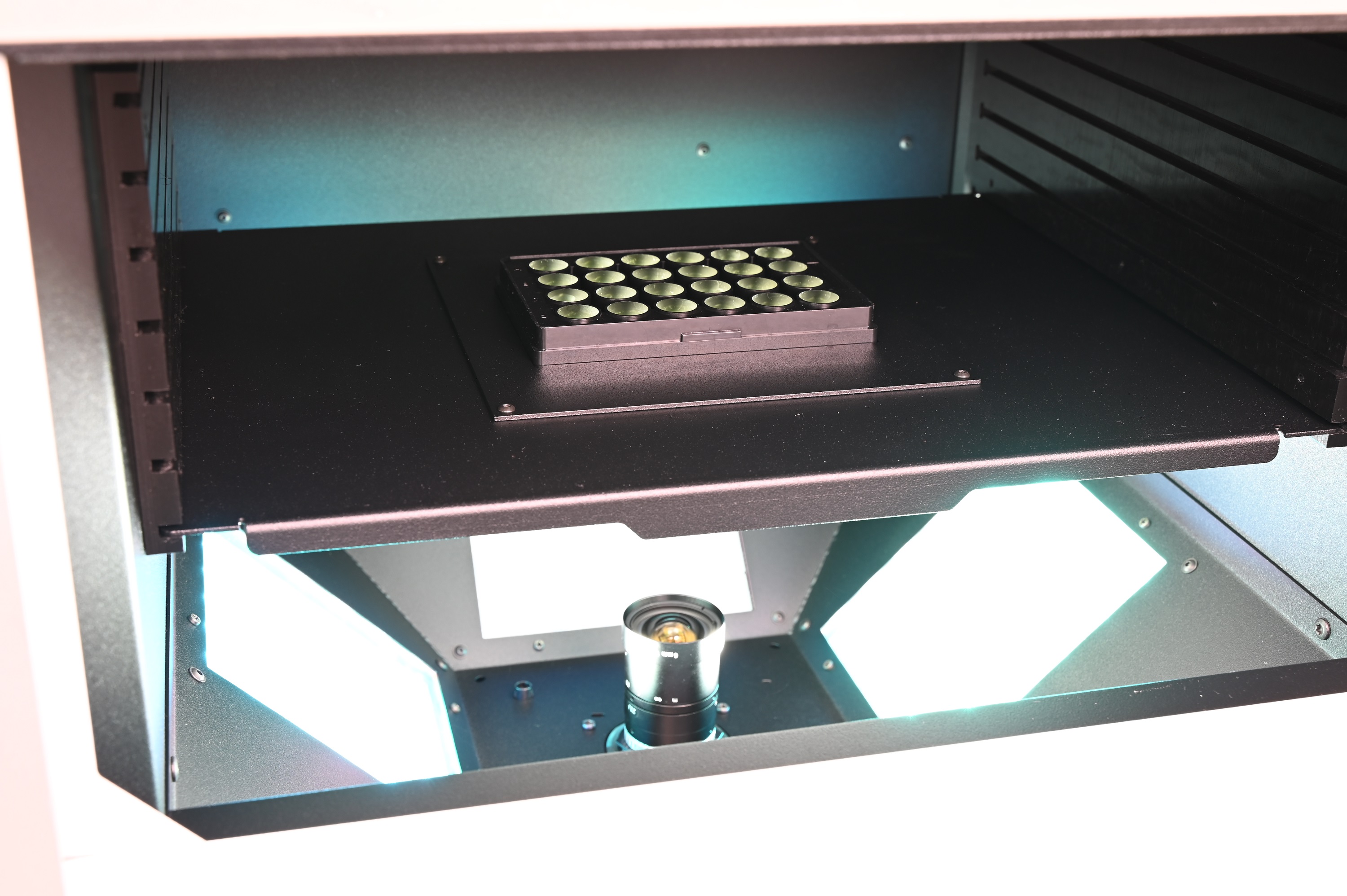

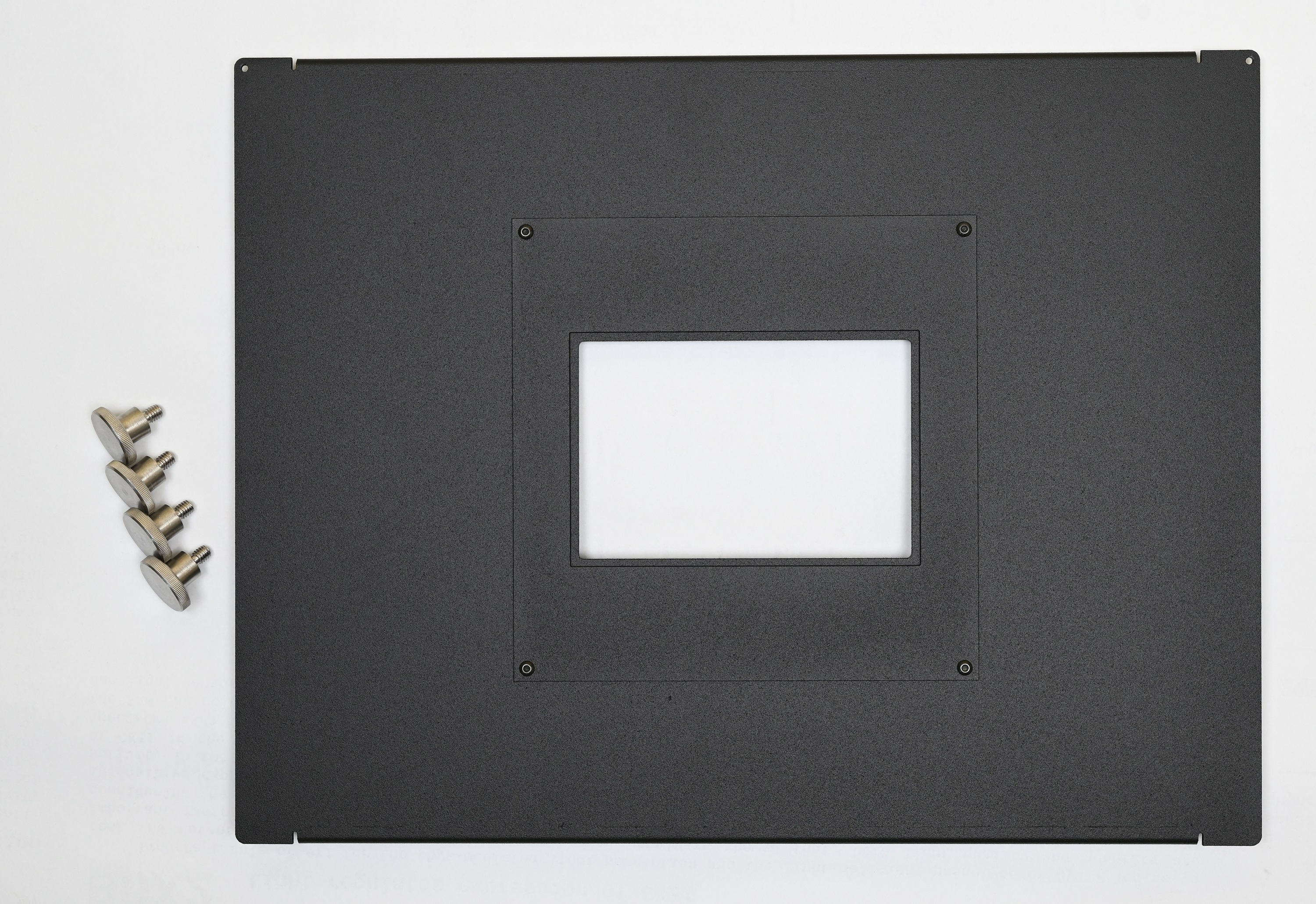

Extension facilitates capability for inverted (upside-down) imaging of micro-plates. The set includes a specially designed shelf with a grid for fixed and defined placement of the microplates and supplementary legs providing extra support for ergonomic function of FC in an inverted configuration. 65 €
