Flat Handy FluorCam 1300
Chlorophyll Fluorescence Imaging from Individual Cells to Plant Populations
About...

Discover the innovative Flat Handy FluorCam FC 1300-H and Flat Handy GFPCam FC 1300-H/GFP, the ultimate solutions for easy fluorescence imaging in a variety of small biological samples up to 40 x 40 mm wide. Designed for versatility, these portable devices can be operated both in the field with a battery pack or in a lab connected to electricity. The Flat Handy GFPCam FC 1300-H/GFP also offers specialized GFP imaging for studies with GFP-containing GMOs or transgenic proteins visible at the plant level. Equipped with a high-resolution CCD camera and a unique flat LED panel, these systems provide precise illumination and versatile imaging capabilities.

Key Features

  • Versatility in Use: Suitable for field and laboratory applications, with options for battery or electric power.
  • Advanced Illumination System: Features a flat LED panel for precise, adjustable illumination to suit various experimental needs.


  • Comprehensive Software Package: Includes automated control, numerous experimental protocols, and advanced image processing capabilities.
  • Optional GFP Imaging: Ideal for detailed studies on GFP-containing GMOs and transgenic protein expression in plants.

Flat Handy FluorCam


Introducing the Flat Handy FluorCam FC 1300-H and the GFPCam FC 1300-H/GFP, our innovative, lightweight, portable devices designed for time-resolved chlorophyll fluorescence imaging. These versatile devices are perfect for examining leaves, small plants, leaf segments, mosses, lichens, seeds, fruits, roots, tissues, or algal and cyanobacterial colonies in plates. Both models can be used in the field with a battery pack or in the lab connected to an electric source. The GFPCam FC 1300-H/GFP also supports GFP imaging.

These compact instruments feature a high-resolution CCD camera and a small, flat LED panel that provides accurate directional illumination. The novel flat panel design enhances sample placement flexibility, utilizing orange-red light for measuring pulses and either white or royal blue light for actinic illumination and saturating flash. The Flat Handy FluorCams are easily portable systems, operable via an external power supply or batteries. Handling larger leaves, such as tobacco, is made easier with an optional leaf clip that includes a gentle lock/release mechanism.

Both versions capture fluorescence signal images at any experiment phase and display them using a false color scale. They support full kinetic analysis and allow for the imaging of fluorescence transients induced by actinic light or saturating flashes. Users can customize the timing and amplitude of actinic irradiance via user-defined protocols.

Each device comes with a laptop pre-installed with our comprehensive software package. This package offers full system control through a Wizard interface, including the most commonly used experimental protocols, data acquisition, and image processing tools. For advanced users, the software provides options for automatic triggering of multiple protocols.

Key Features:


  • Versatility in Use: Suitable for field and laboratory applications, with options for battery or electric power.
  • Advanced Illumination System: Features a flat LED panel for precise, adjustable illumination to suit various experimental needs.
  • Comprehensive Software Package: Includes automated control, numerous experimental protocols, and advanced image processing capabilities.
  • Optional GFP Imaging: Ideal for detailed studies on GFP-containing GMOs and transgenic protein expression in plants.

Versions

Flat Handy FluorCam FC 1300-H

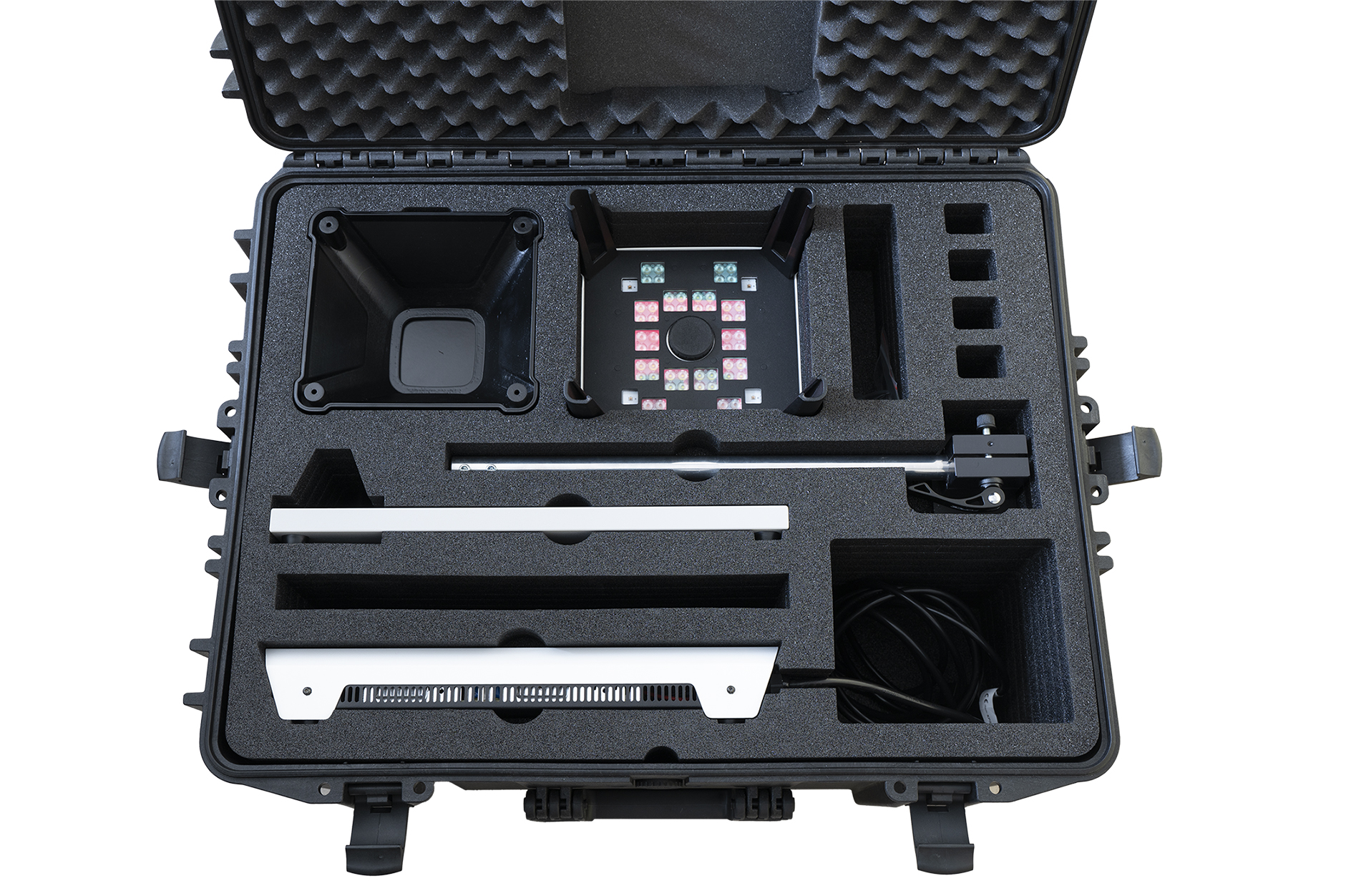

The FC 1300-H is an innovative, lightweight, and portable device designed for sophisticated time-resolved chlorophyll fluorescence imaging. This model guarantees a 40 × 40 mm field of view and is equipped with a high-resolution camera, a chlorophyll fluorescence emission filter, and a new flat LED light panel utilizing red-orange, white, and far-red LED-derived light sources. Complete with a stand, power source, control PC, the comprehensive FluorCam10 software package, and an electronic user’s guide, this system is perfect for conducting photosynthesis research in the lab or in the field with the power access. An optional battery pack is available to enhance mobility and expand research capabilities.

Flat Handy GFPCam FC 1300-H/GFP
Tailored to meet the extended needs of our customers, the FC 1300-H/GFP facilitates both time-resolved chlorophyll fluorescence and GFP imaging. This portable, innovative device offers a guaranteed 40 × 40 mm field of view and features a high-resolution camera with two exchangeable filters for chlorophyll and GFP fluorescence emission. It includes a new flat LED light panel that utilizes red-orange, royal blue, and far-red LED-derived light sources. Equipped with a stand, power source, control PC, the FluorCam10 software package, and an electronic user’s guide, the FC 1300-H/GFP is ideal for conducting detailed plant research either in the lab or outdoors with power access. An optional battery pack is available to further extend the device's application possibilities.


Optional features and accessories

Battery Pack Box with a Charger
Enhance the mobility and expand the research capabilities of your Flat Handy FluorCam devices with our Battery Pack Box. Equipped with a high-capacity Li-Ion battery, this accessory requires regular charging to maintain the battery's optimal performance, ensuring reliability in all your research applications.

Leaf Clip
Interested in testing larger samples? Our leaf clip is designed for handling larger plant leaves, facilitating easy manipulation and dark adaptation of selected leaf segments before chlorophyll fluorescence measurement or fluorescence protein assessment. It features a gentle lock/release mechanism to prevent leaf damage while ensuring repetitive measurements of the same area of interest.

Tripod
For versatility in research environments, the Flat Handy FluorCam can be mounted on the included table stand or an optional tripod. The tripod is ideal for measuring larger plants or conducting measurements in outdoor conditions, offering stability and flexibility in various research setups.

[h1]Documents[/h1] [list] [*][b] FluorCam Operation Manual (pdf)[/b] [*][b] FluorCam Quick Start Guide (pdf)[/b] [*][b] Driver Instalation manual (pdf)[/b] [/list] [h1]Software[/h1] [list] [*] [b] FluorCam 7 (installer), OS: Win 7/10[/b] [*] [b] Legacy driver for USB cameras, OS: Win 7 (32 bit)[/b] [/list] [h1]Promotional Materials[/h1] [list] [*][b] FluorCams leaflet (pdf)[/b] [/list] [h1]Tutorial video[/h1] [list] [*][b] FluorCam Tutorial video (mp4)[/b] [/list]

Pricing


Flat Handy FluorCam
Version Characteristics Price
Flat Handy FluorCam FC 1300-H Suitable for samples up to 4 cm × 4 cm wide. Includes high-resolution camera (1.4 MPx), the flat panel illumination with orange-red, white and far-red LED-based light sources, a high-resolution camera (1.4 MPx), a chlorophyll fluorescence filter, a power supply, control PC with software package, connecting cables, user's guide. 17,790 €
Flat Handy GFPCam FC 1300-H/GFP Suitable for samples up to 4 cm × 4 cm wide. Includes high-resolution camera (1.4 MPx), the flat panel illumination with orange-red, royal blue and far-red LED-based light sources, a high-resolution camera (1.4 MPx), two chlorophyll and GFP fluorescence filters, a power supply, control PC with software package, connecting cables, user's guide. 22,099 €

Optional Accessories

Leaf Clip Minimizes sample manipulation and allows for dark adaptation. 520 €
Ultra-Light Tripod* Ideal for field experiments; includes carrying bag. Weight: 3.3 kg. 529 €
Battery Pack* Enhances portability for field experiments. Weight: 3.6 kg. Bag dimensions: 220 × 200 × 130 mm. 1,699 €
FluorCam10 software (without a Laptop) The latest generation of 64-bit control software for FluorCam devices with an array of enhanced tools aimed at data analysis, visualization, mass export of data. Additionally, it offers three optional extensions specifically designed to support various setups for benchtop-based automated measurements. The software is delivered on a USB flash drive. (Requirements: PC with Win10 or higher, a decent x64-based processor, 16 GB RAM, storage 1 TB, a Gigabit Ethernet network card.) 2,700 €
FluorCam10 Software with a Pre-installed Laptop* The latest generation of 64-bit control software for FluorCam devices with an array of enhanced tools aimed at data analysis, visualization, mass export of data. Additionally, it offers three optional extensions specifically designed to support various setups for benchtop-based automated measurements. The software is delivered on a pre-installed laptop (64-bit operating system, x64-based processor, 16 GB of RAM, 256 GB SSD + 1 TB HDD storage, a Gigabit Ethernet network card essential for the connection with the FluorCam device). 3,900 €
Advanced Multiple Function for FluorCam10 Software This software extension allows automated triggering of a single measurement protocol. Ideal for standardized data collection, this feature simplifies experimental workflows by automating protocol initiation. 490 €
Advanced Circadian Function for FluorCam10 Software This extension is specifically designed for circadian rhythm studies, enabling the automated triggering of two distinct measuring protocols—one for the daytime phase and another for the nighttime phase. This feature ensures precise, automated control over the two-phase experimental setup, making it ideal for accurately monitoring diurnal and nocturnal changes. 990 €
Advanced Multi-phase Function for FluorCam10 Software Enhances research versatility by allowing the integration and automation of multiple experimental phases, each with its own unique protocol. This extension is perfect for complex studies requiring varied conditions and sequential protocol activation. 1,690 €
Additional Protective Glasses* Radiation safety glasses equipped with side cover and protective filters. One pair is included free with each device purchase. 25 €
